Pipeline Flowmeter
Installed on the pipeline between the fuel tank and the engine, it performs real-time monitoring of the engine's instantaneous fuel consumption and sends pulse signals, working in coordination with the receiving terminal (Z20) via wired connection
WhatsApp
Contact Sales

Product Details


▌Equipment Parameters


Indicator ItemsParameters
Main Functions➤ Basic principle: Based on the principle of moment balance, it is a velocity-type flow meter, with characteristics such as simple structure, lightweight, high precision, good reproducibility, sensitive response, and easy installation and maintenance.
➤ Stable output signal: Outputs pulse frequency signals, with no zero drift and good anti-interference performance.
➤ Wide measuring range: 1:20 for medium and large calibers, 1:10 for small calibers.
➤ Compact structure: Simple structure, easy to install and maintain, with large flow capacity.
Measurement Range500mm-6000mm
Power Supply12VDC
Power Consumption≤60mA
Ambient Temperature-30 - +70环境
Measurement Accuracy±0.5%R, with instrument correction and intelligent compensation.
Explosion-proof RatingEx ia IIA T5 Ga
Applicable MediumGasoline, kerosene, diesel oil, light oil, heavy oil, methanol, toluene and other liquids
Protection ClassIP67

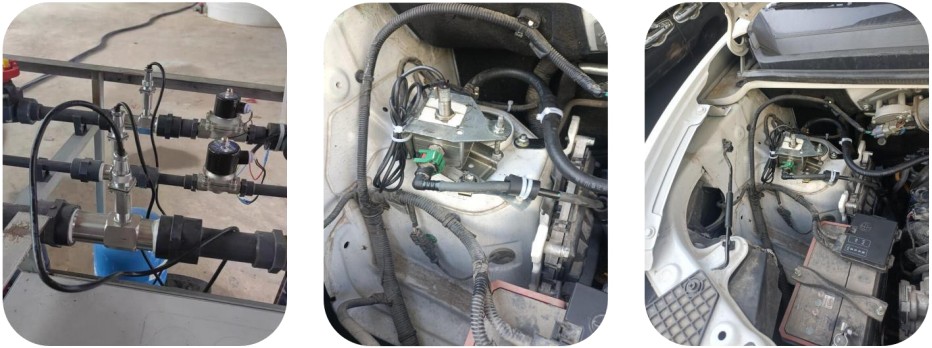

▌Installation Photo
