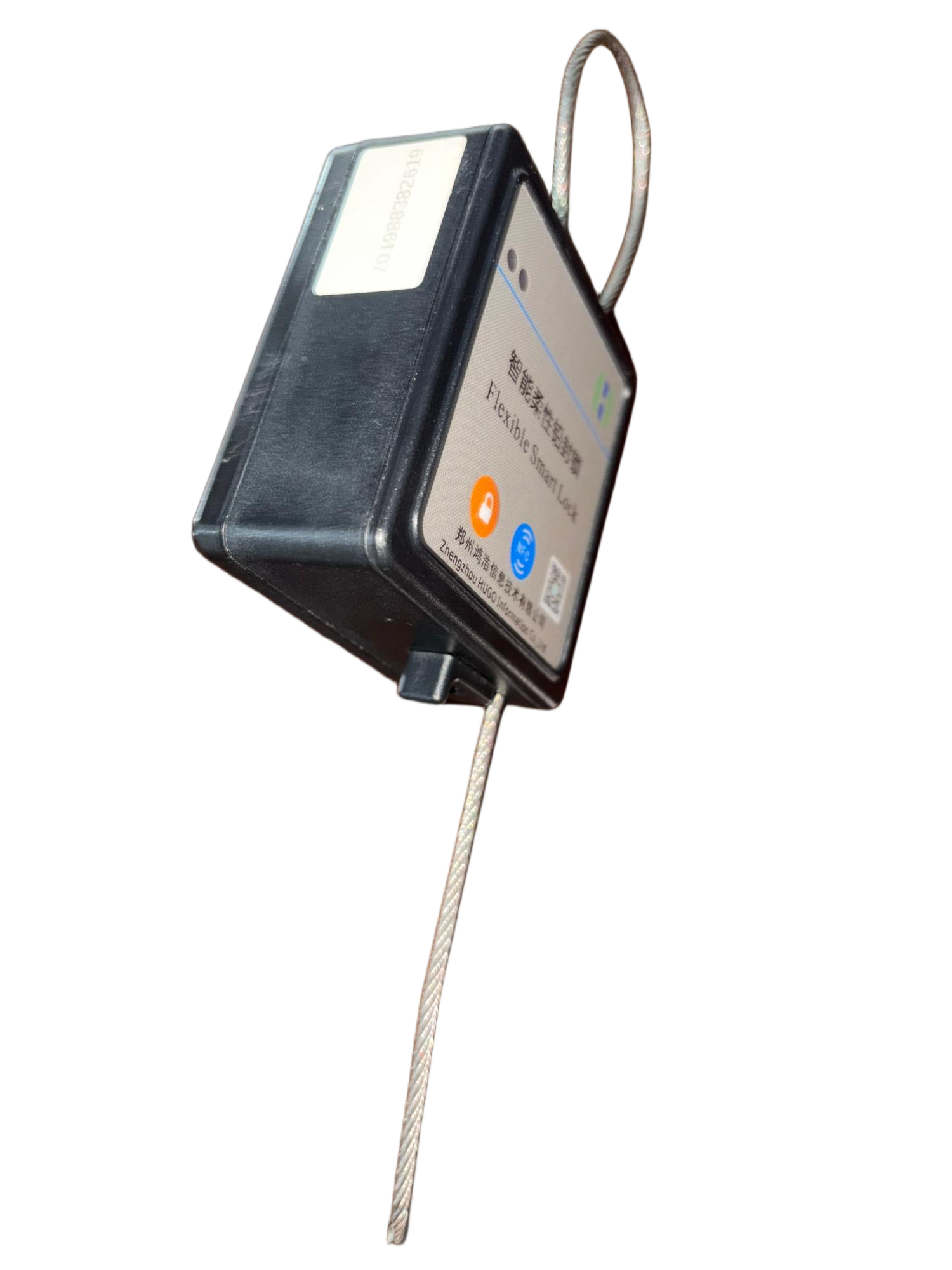

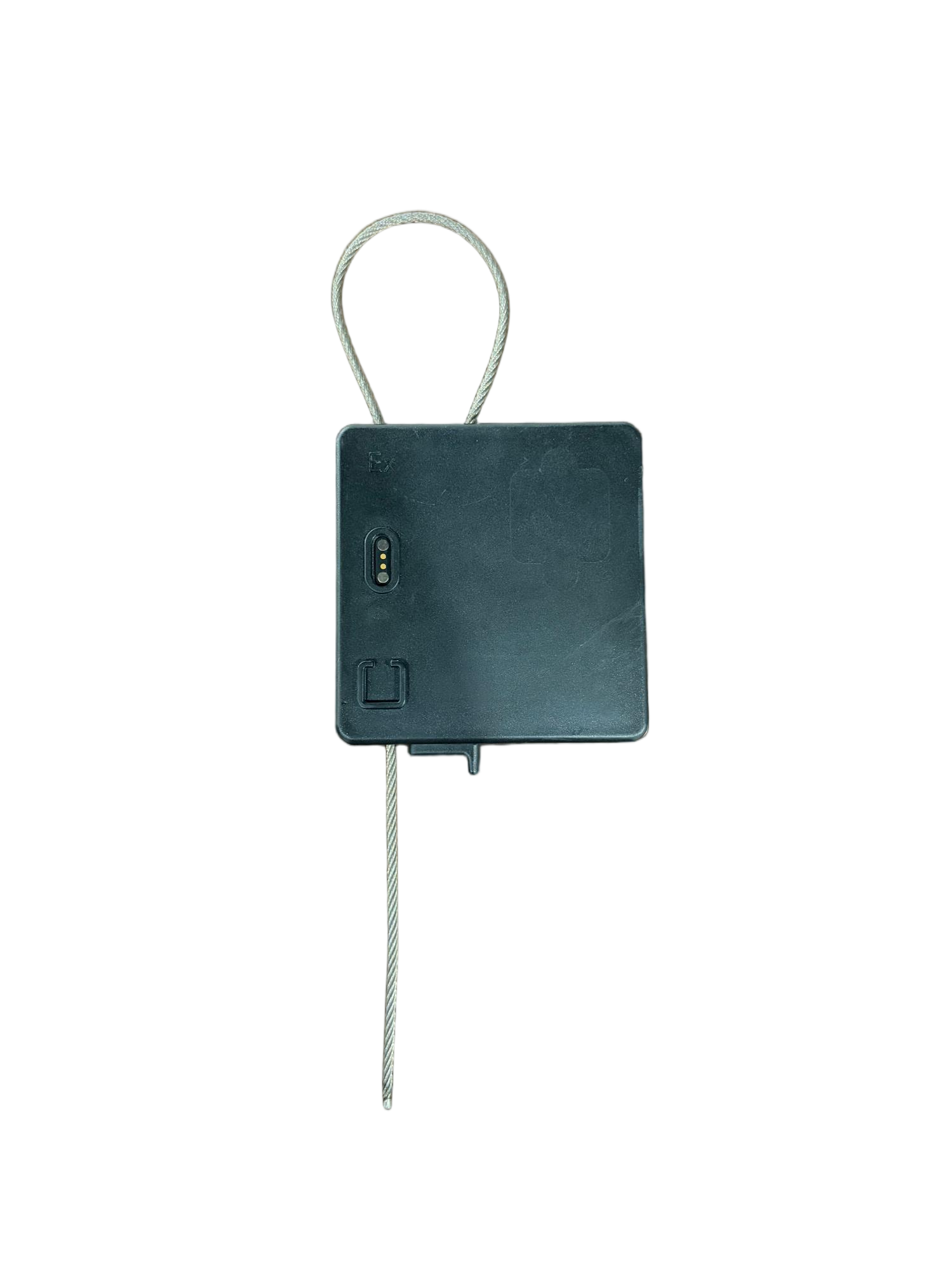

Smart Flexible Lock(R1/R2)
Mainly installed in areas such as tank truck side boxes, oil tank openings, and gas station oil unloading ports, it is an electronic lock based on technologies like the Internet of Things (IoT) and satellite positioning, used for safety supervision of cargo transportation as well as anti-counterfeiting and traceability. This lock is a keyless one, supporting GPS/Beidou positioning and 4G/Bluetooth/LoRa communication. It can be controlled via remote, mobile phone, or SMS, and can store 60,000 data records offline.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions• Flexible steel wires can meet the sealing needs of scenarios with different lengths and irregular sealing holes.
• After sealing, it features bidirectional locking, which is superior to one-way locking products on the market, with better prevention and control effects.
• The physical one-key sealing button is simple and quick to operate.
• NFC enables accurate and quick user authentication.
Input VoltageDC4.7V
Rated Current200uA
Battery Capacity1000mAh
Explosion-proof RatingExd IIC T4 Ga
Ambient Temperature-40~+60℃
Protection ClassIP67
Signal Output4G/Bluetooth/Lora
RepeatabilityMore than 10,000 times
Usage ModeMobile, wear and use instantly

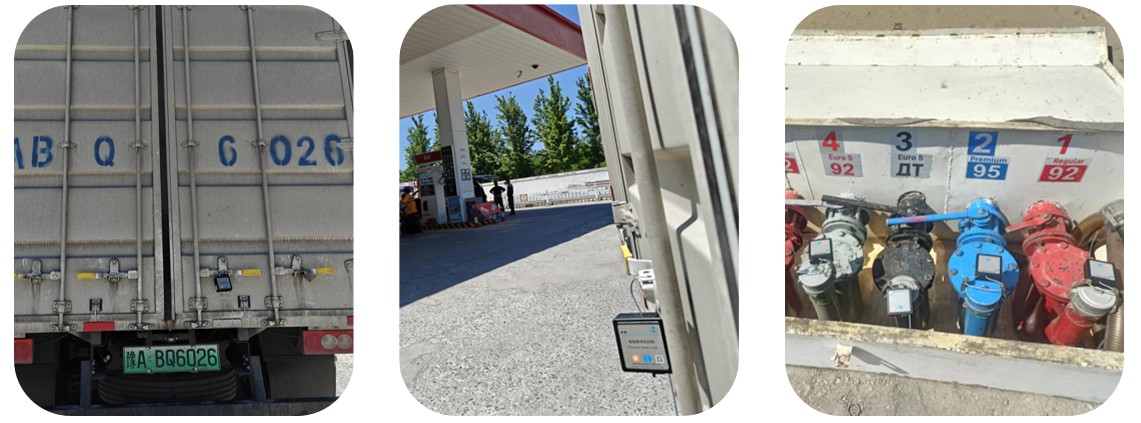

▌Installation Photo

Smart Flexible Lock(R1R2)-On-site installation
