IOT Lead Seal (Q300)

›

‹

  • IOT Lead Seal (Q300)

›

IOT Lead Seal (Q300)
The IOT Seal Strip (Q300) is an intrinsically safe explosion-proof device. It is mainly installed on parts where steel wire physical lead seals need to be applied. The two-code integration design of the lead seal wire ensures its uniqueness. It is used in conjunction with the intelligent terminal (Z20) via near-field communication, and alerts immediately once the seal is broken. It is mainly used to replace traditional steel wire physical lead seals for intelligent management and control with extremely high anti-counterfeiting requirements. Installation locations: risk areas such as oil unloading side box doors, oil tank openings, and fuel dispenser doors.
WhatsApp
Contact Sales

Product Details


▌Equipment Parameters


Indicator ItemsParameters
Main FunctionsThe IOT Seal Strip (Q300) is an intrinsically safe explosion-proof device. It is mainly installed on parts where steel wire physical lead seals need to be applied. The two-code integration design of the lead seal wire ensures its uniqueness. It is used in conjunction with the intelligent terminal (Z20) via near-field communication, and alerts immediately once the seal is broken. It is mainly used to replace traditional steel wire physical lead seals for intelligent management and control with extremely high anti-counterfeiting requirements.
Explosion-proof RatingEx ia IIC T6 Ga
Power SupplyBuilt-in disposable battery
Service Life5 years (except for low-temperature areas)
Ambient Temperature-30-+70°C
Number of Uses15000次
Encoding TypesLead seal with three codes in one (physical code, RFID code, device chip code); steel wire with two codes in one (physical code, RFID code)

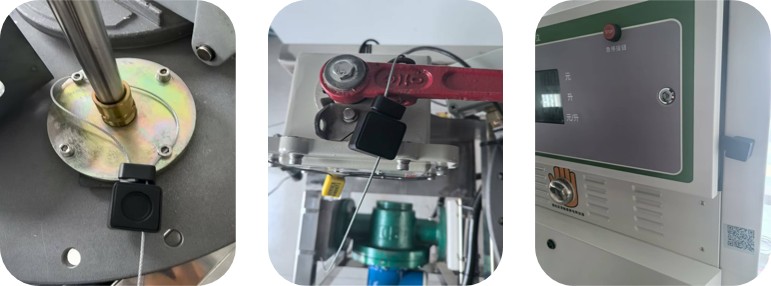

▌Installation photo

12
