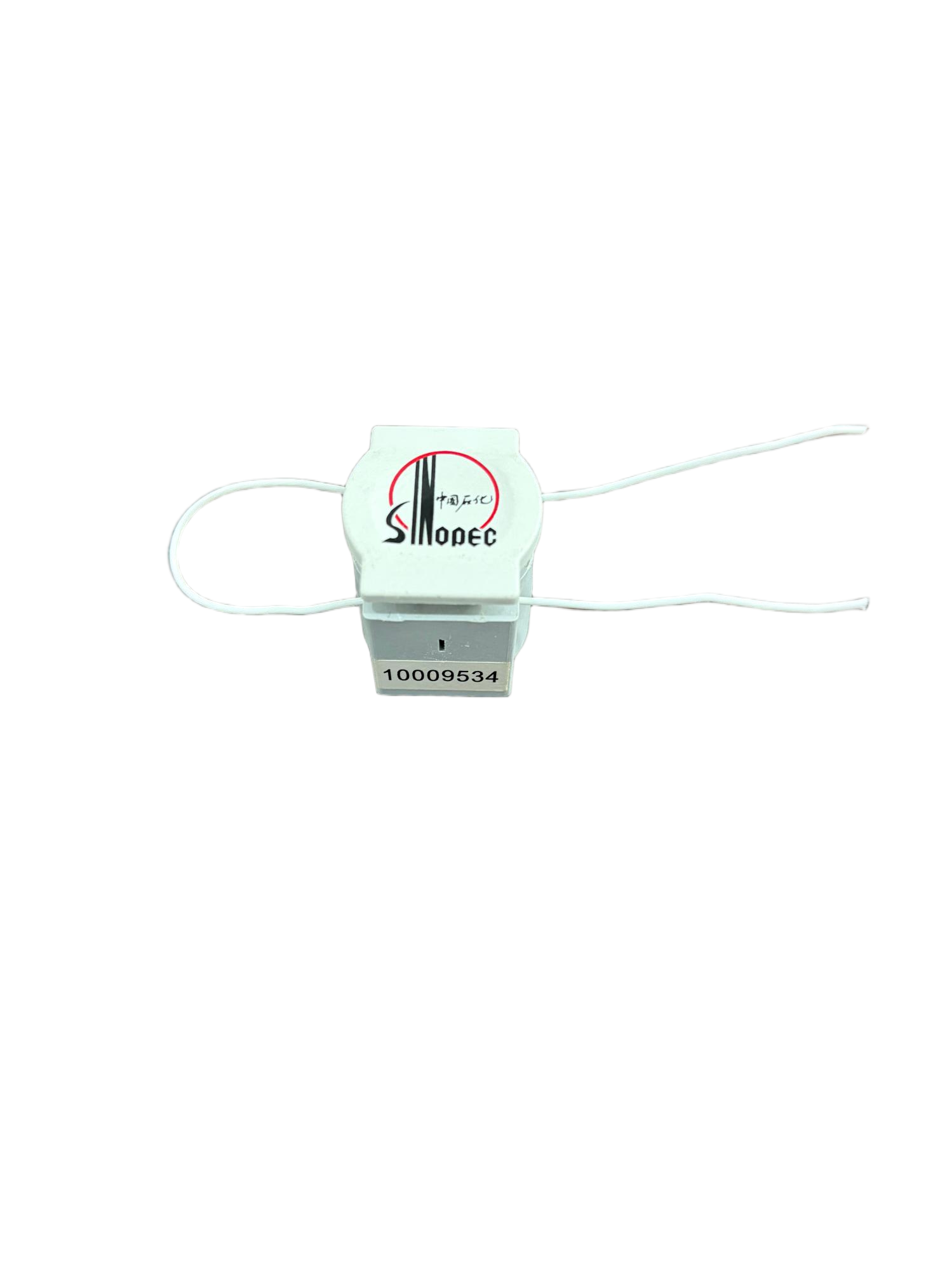

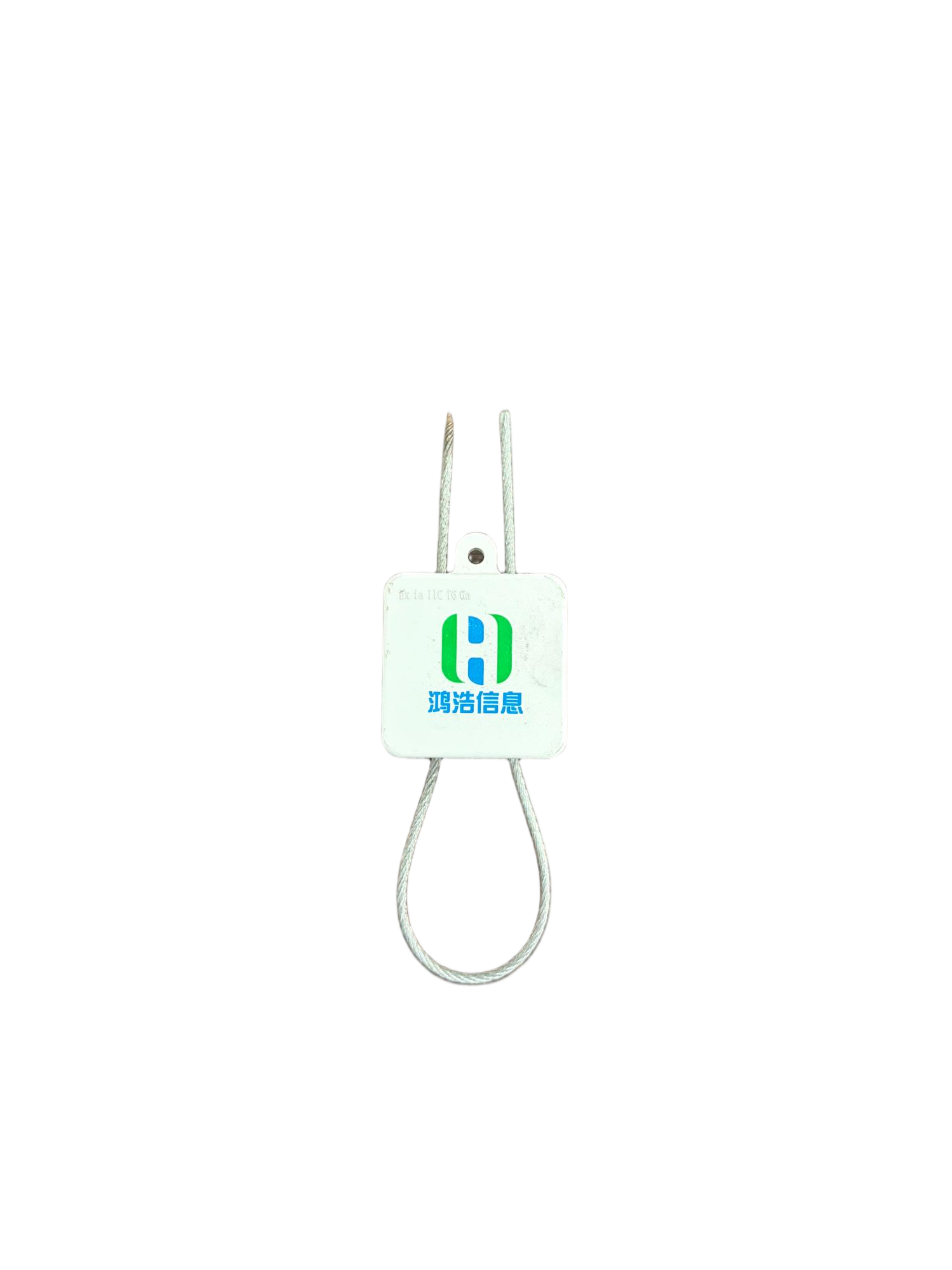

IOT Lead Seal (Q200)
The IOT Seal Strip (Q200) is an intrinsically safe explosion-proof device. It is mainly installed on parts where steel wire physical lead seals need to be applied, and used in conjunction with the intelligent terminal (Z20) via near-field communication. Once the seal is broken, it alerts immediately. It is mainly used to replace traditional steel wire physical lead seals for intelligent management and control. Installation locations: risk areas such as breather valves on manhole covers, various flange connections, and bottom valve interfaces.
WhatsApp
Contact Sales

Product Details


▌Equipment Parameters


Indicator ItemsParameters
Main FunctionsThe IOT Seal Strip (Q200) is an intrinsically safe explosion-proof device. It is mainly installed on parts where steel wire physical lead seals need to be applied, and used in conjunction with the intelligent terminal (Z20) via near-field communication. Once the seal is broken, it alerts immediately. It is mainly used to replace traditional steel wire physical lead seals for intelligent management and control.
Explosion-proof RatingEx ia IIC T6 Ga
Power SupplyBuilt-in disposable battery
Service Life5 years (except for low-temperature areas)
Ambient Temperature-30-+70°C
Number of Uses15000次
Encoding TypesThree codes in one (physical code, RFID code, device chip code)

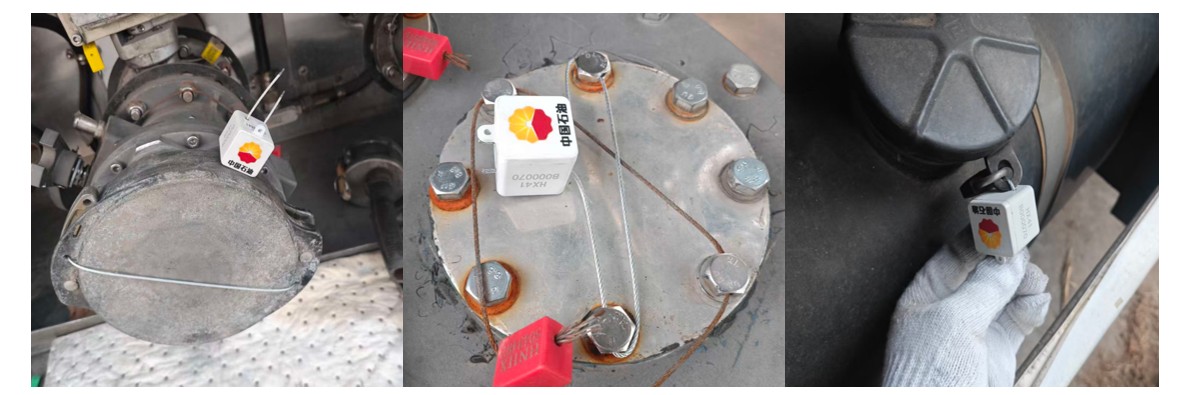

▌Installation photo
