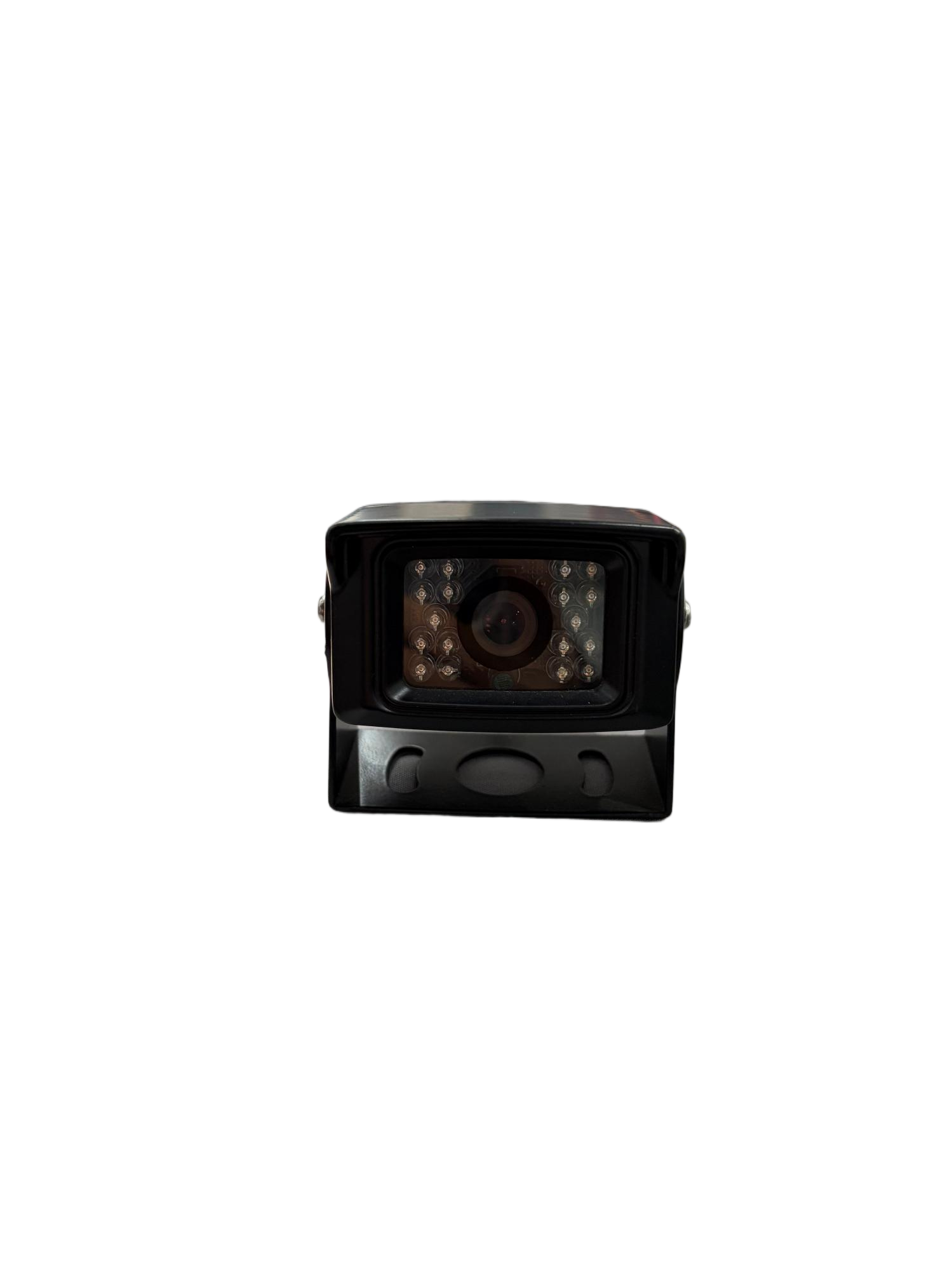

Explosion-Proof Camera

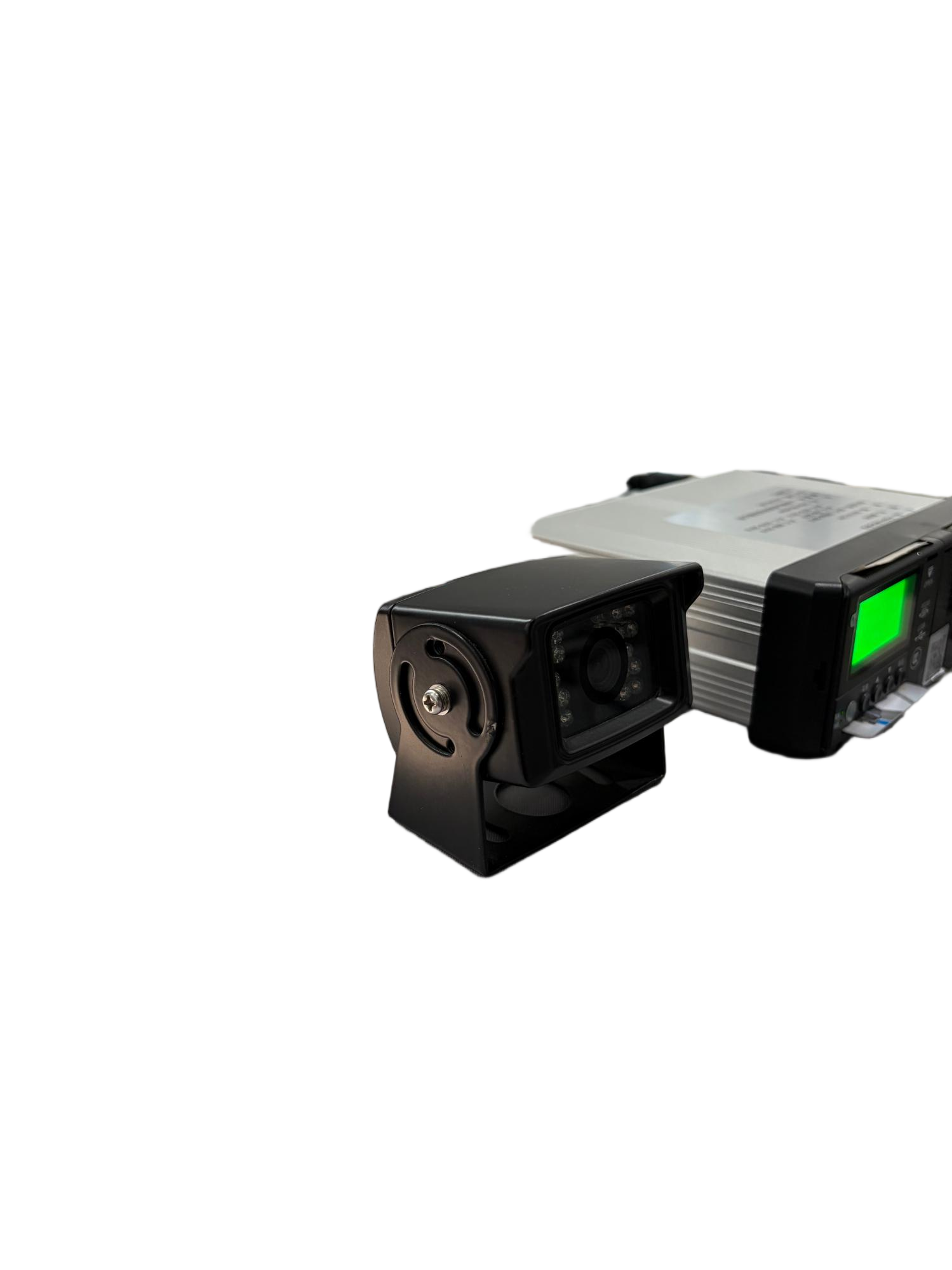

Divided into explosion-proof cameras and ordinary cameras, they are flexibly installed inside the cab (road ahead, driver), on the top of the vehicle (oil loading port), and on the left and right sides of the vehicle (oil unloading port), working in coordination with the video host via wired connection.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions

The explosion-proof camera is applicable to explosive hazardous areas in factories, including Zones 0, 1, and 2 formed by flammable gases/vapors of Class ⅡA, ⅡB, ⅡC and Group T1 ~ T6 mixed with air, as well as Zones 20, 21, and 22 formed by flammable dusts mixed with air. Small in size, light in weight, with special anti-vibration treatment, suitable for vehicle-mounted installation.

The tempered glass window is nano-treated, featuring high light transmittance, water and oil repellency, and dust repellency.

Low power consumption, excellent heat dissipation, and capable of working continuously for a long time.

Lens2.8mm/4mm/6mm fixed-focus lens (optional)
Operating Current≤1000mA
Input VoltageDC12V
InfraredDistance: 15-30m; Wavelength: 850nm; Switch: Auto (≤10Lux)
Ambient Temperature-40~+70°C
Explosion-Proof MarkEx db IIC T6 Gb
Protection ClassIP68/IP66
Housing MaterialMade of aerospace-grade aluminum alloy or high-quality 304 stainless steel, featuring explosion-proof, dust-proof, waterproof and rust-proof properties

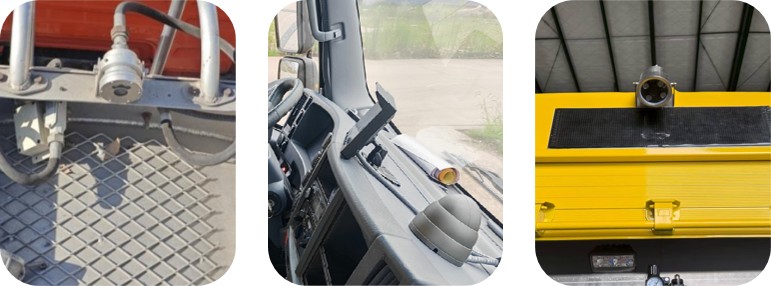

▌installation photo


12
