Emptying Sensor(P10)

›

‹

›

Emptying Sensor(P10)
This device is installed at the oil unloading port pipeline, serving as an intelligent monitoring tool for refined management. It works in coordination with the intelligent central control system via wired connection. Its core function is real-time monitoring of the accumulation status of liquid in the pipeline, accurately determining whether the oil products are completely unloaded, thus providing reliable data support for the management of oil loading and unloading.
WhatsApp
Contact Sales

Product Details


▌Equipment Parameters


Indicator ItemsParameters
Main Functions• Core Monitoring: Through the collection of temperature and humidity, infrared, pressure and other indicators, monitoring whether the pipeline oil emptying.
• Basic Characteristics: Simple appearance, stable work, communication standardization, wide application environment.
• Data Transmission: Industrial-grade data transmission, reliable performance and good compatibility.
• Installation Advantages: Small size, easy to install.
• Scenario Adaptation: Good adaptability for different industry scenarios.
Input VoltageDC12V
Maximum Power5W
Ambient Temperature-40~+70°C
Shell MaterialZL102 aluminum alloy precision high pressure die casting
Installation MethodWafer
Relative HumidityNot more than 95%
Pollution LevelGrade III

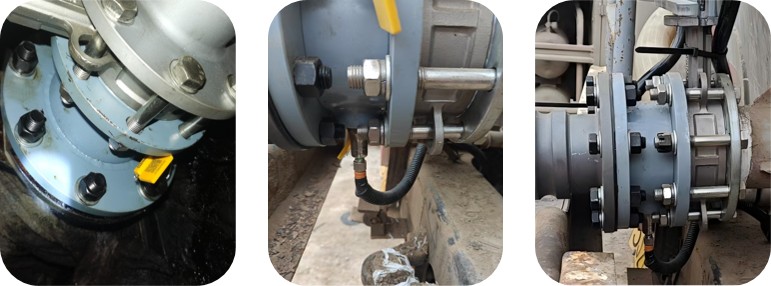

▌installation photo


12
