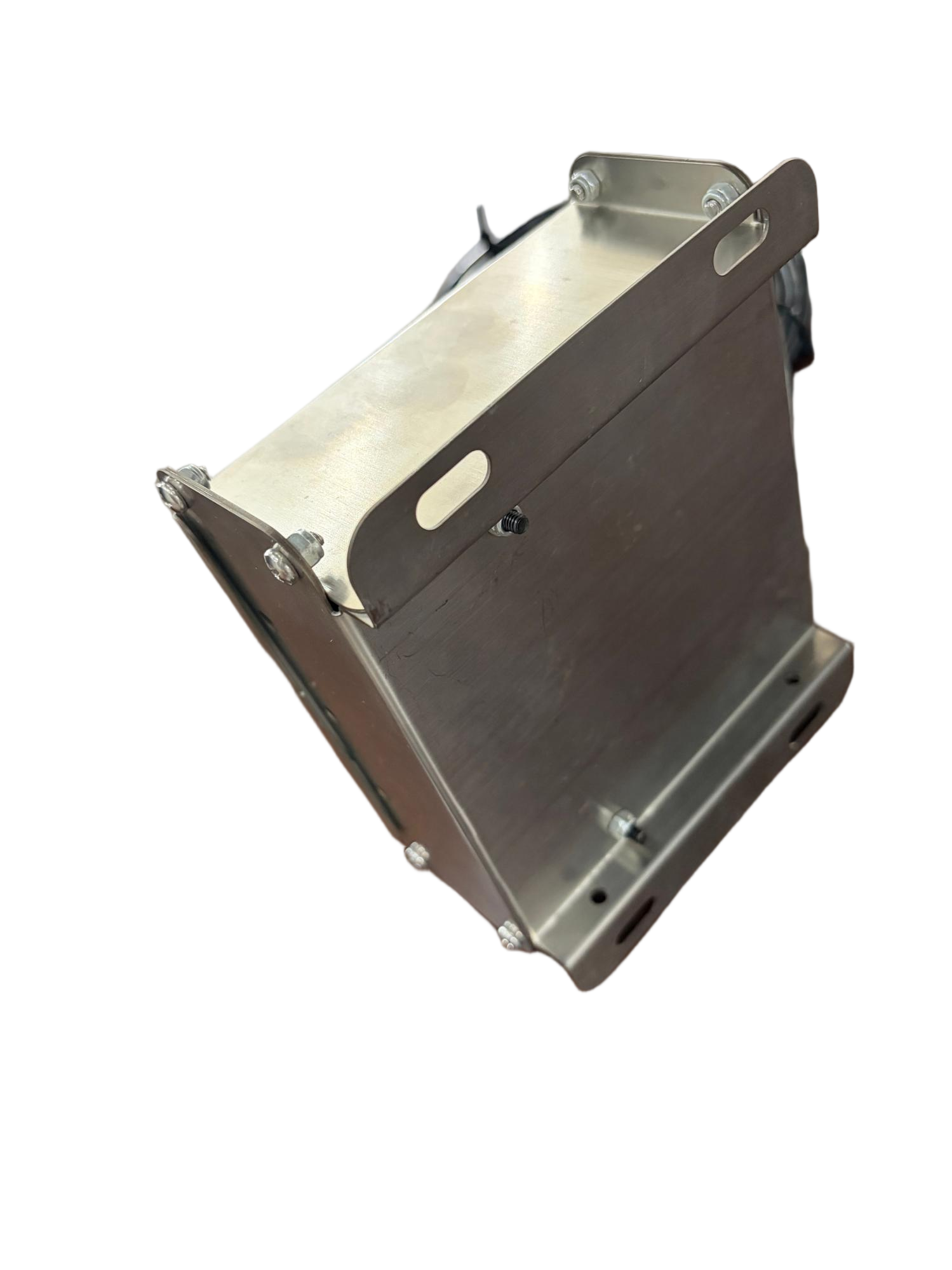

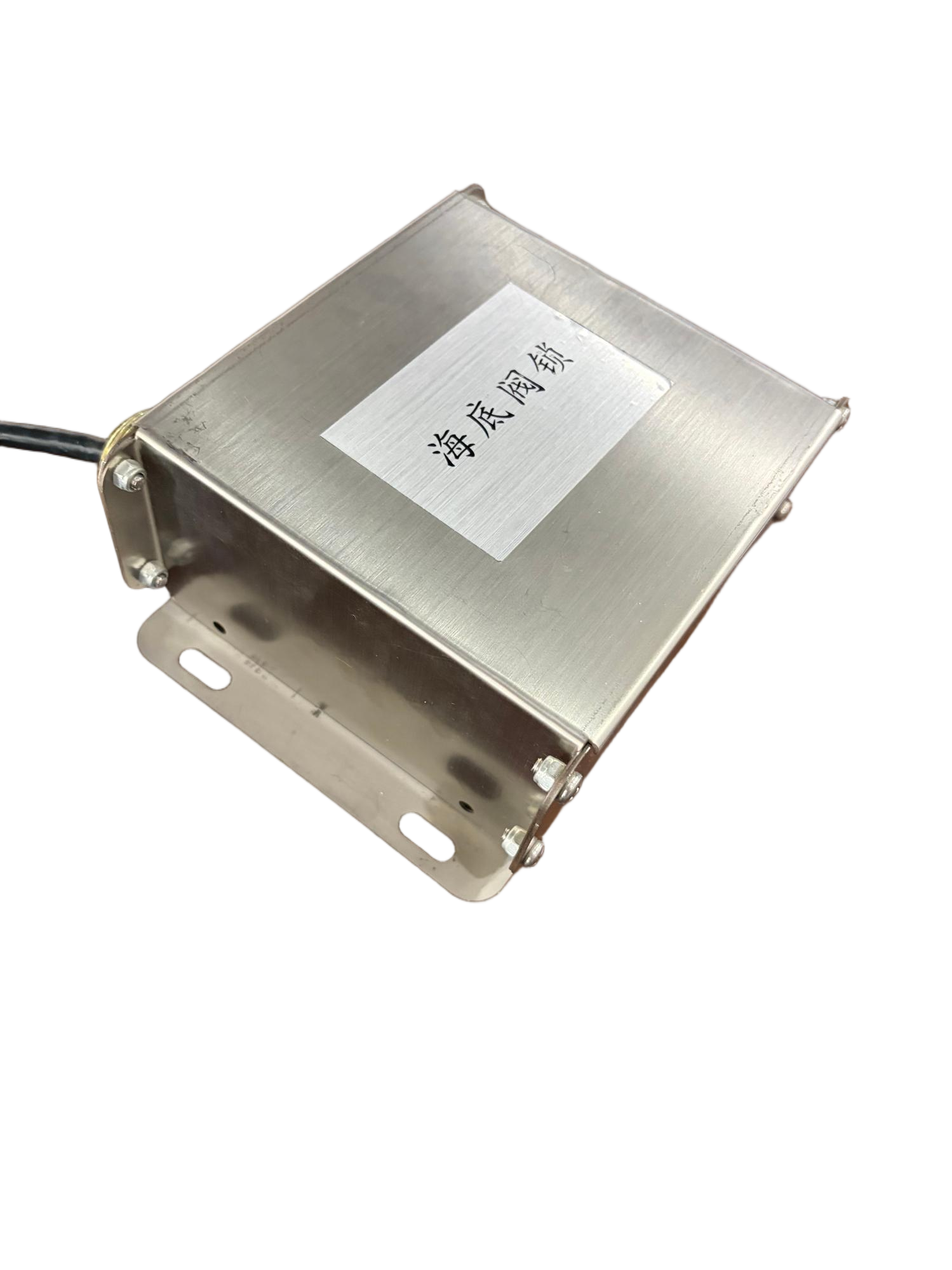

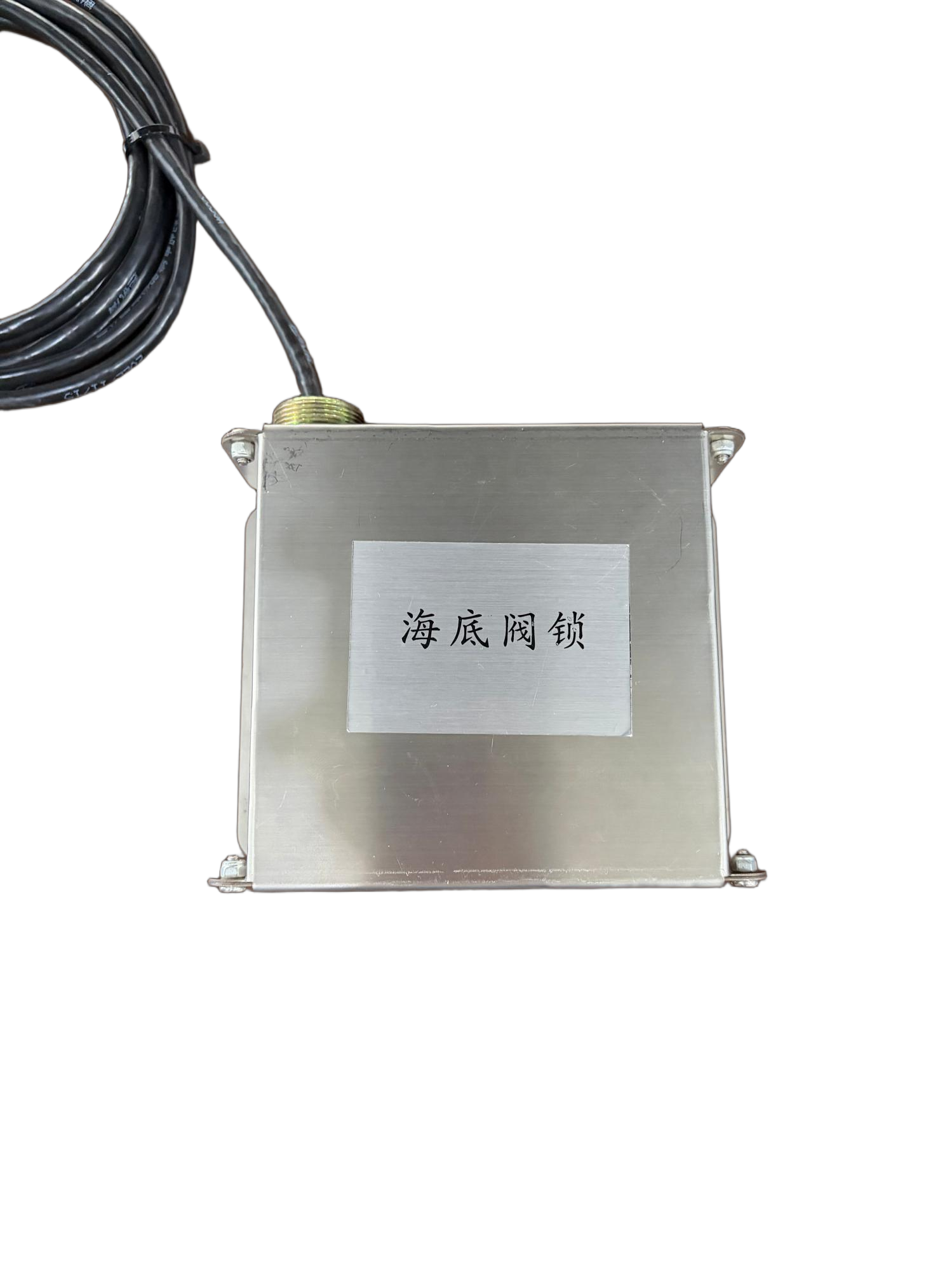

Bottom Valve Lock(H10)

›

‹

›

Bottom Valve Lock(H10)
Installed at the bottom valve on the bottom of the vehicle, it controls the opening and closing of the bottom valve via pneumatic means and works in coordination with the controller (Z10) through wired connection. It enables stable and efficient real-time monitoring of the status of the tank truck’s bottom valve and strong control over its opening and closing.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions• Working Principle: Controls the opening and closing of subsea valves via remote pneumatic operation.
• Basic Features: Simple in shape, stable in operation, standardized communication, and wide environmental adaptability.
• Data Transmission: Industrial-grade data transmission with reliable performance and good compatibility.
• Installation Advantages: Compact size, easy to install.
• Scenario Adaptability: Good adaptability for application scenarios across different industries.
Input VoltageDC12V
Maximum Power5W
Explosion-proof RatingExd ⅡB T4 Gb
Ambient Temperature-40~+70℃
Housing MaterialZL102 aluminum alloy, precision high-pressure die-cast forming
Installation MethodScrew Fixing
Relative HumidityNot exceeding 95%
Pollution DegreeClass Ⅲ


▌Installation Photo

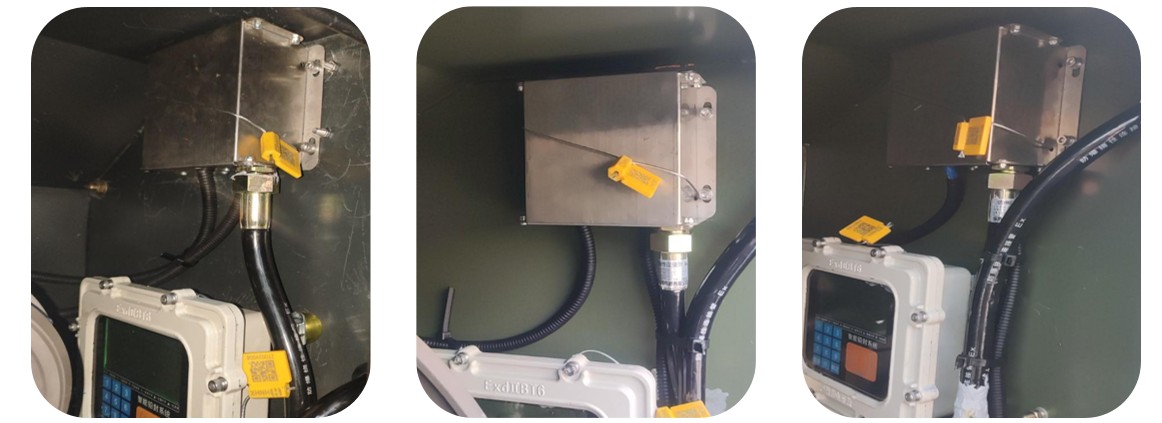

Bottom Valve Lock(H10)-On-site installation
