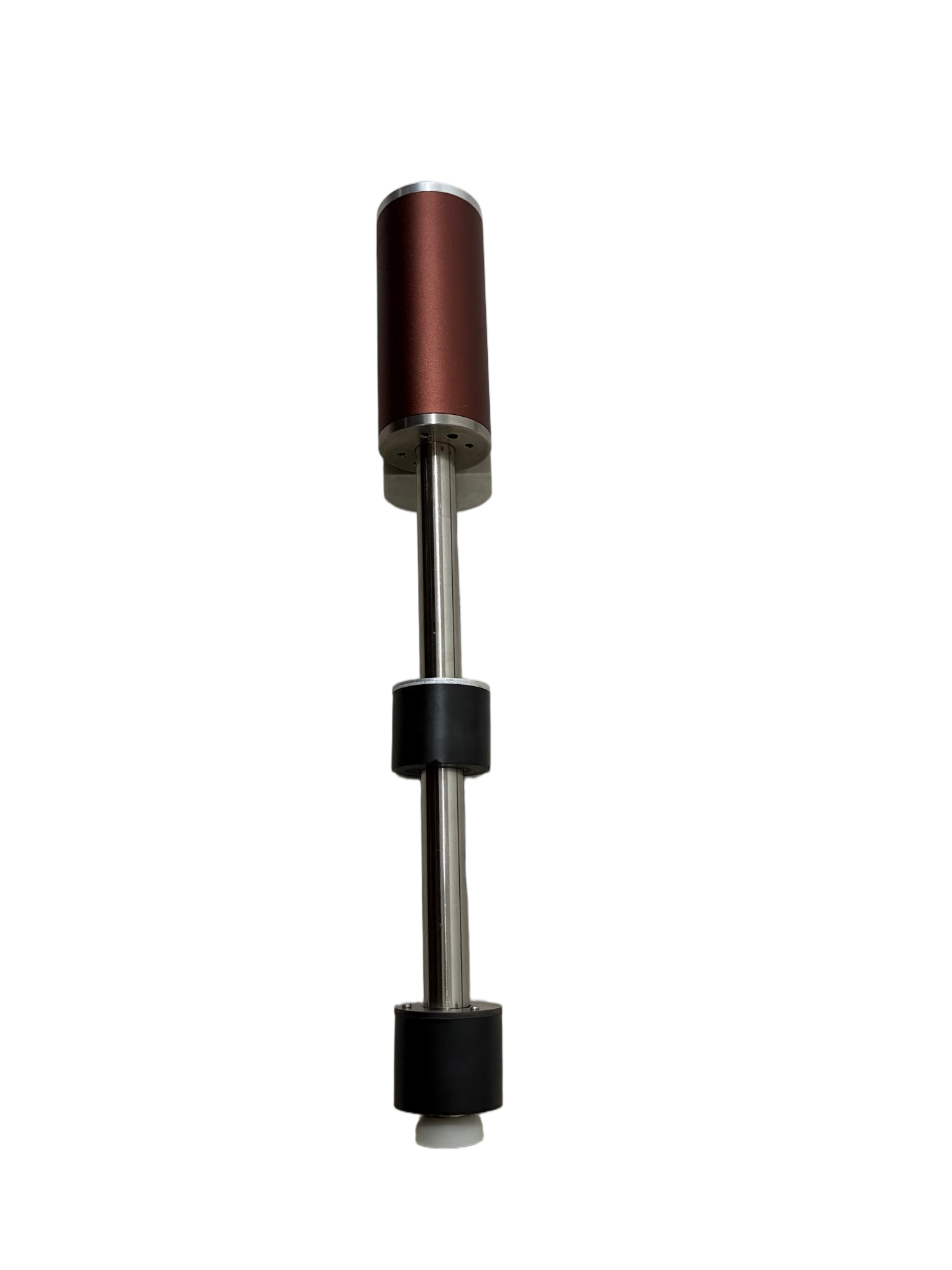

Automatic Tank Gauge(ATG)
Installed at the manhole cover on the top of the vehicle, it serves as an intelligent metering device. Working in coordination with the intelligent central control via wired connection, it can stably and efficiently monitor parameters such as the height (volume), temperature, pressure, and water level of oil products in the tank. The controller (Z10) transmits the data back to the background system in real-time.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions• Principle and Characteristics: Based on the magnetostrictive principle, it boasts advantages such as high precision, long service life, and easy installation, among others.
• Communication and Transmission: Adopts RS485 industrial field bus to communicate with the intelligent central control (Z10).
Measurement Range500mm-6000mm
Power Supply24VDC
Power Consumption≤60mA
Operating Temperature-30~+60°C
Measurement Accuracy±0.5mm
Oil/Water Level Resolution0.01mm
Temperature Measurement Point5个
Upper/Lower Blind Zone60mm/50mm
Explosion-proof RatingEx ia ⅡA T5 Ga
Applicable MediumGasoline, kerosene, diesel oil, light oil, heavy oil, methanol, toluene and other liquids
Protection ClassIP67

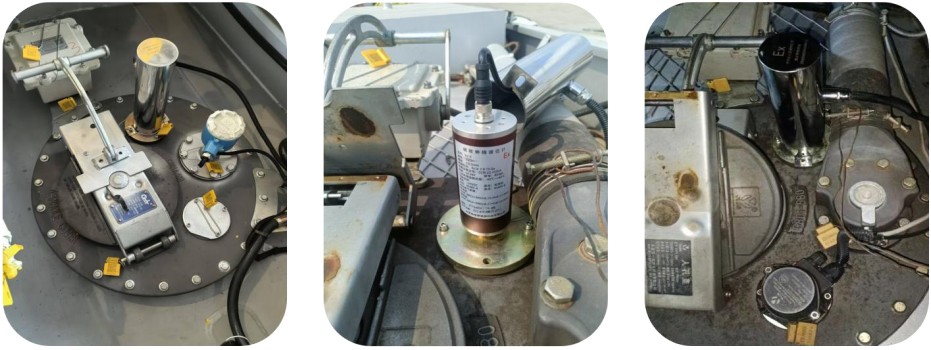

▌installation photo


12
