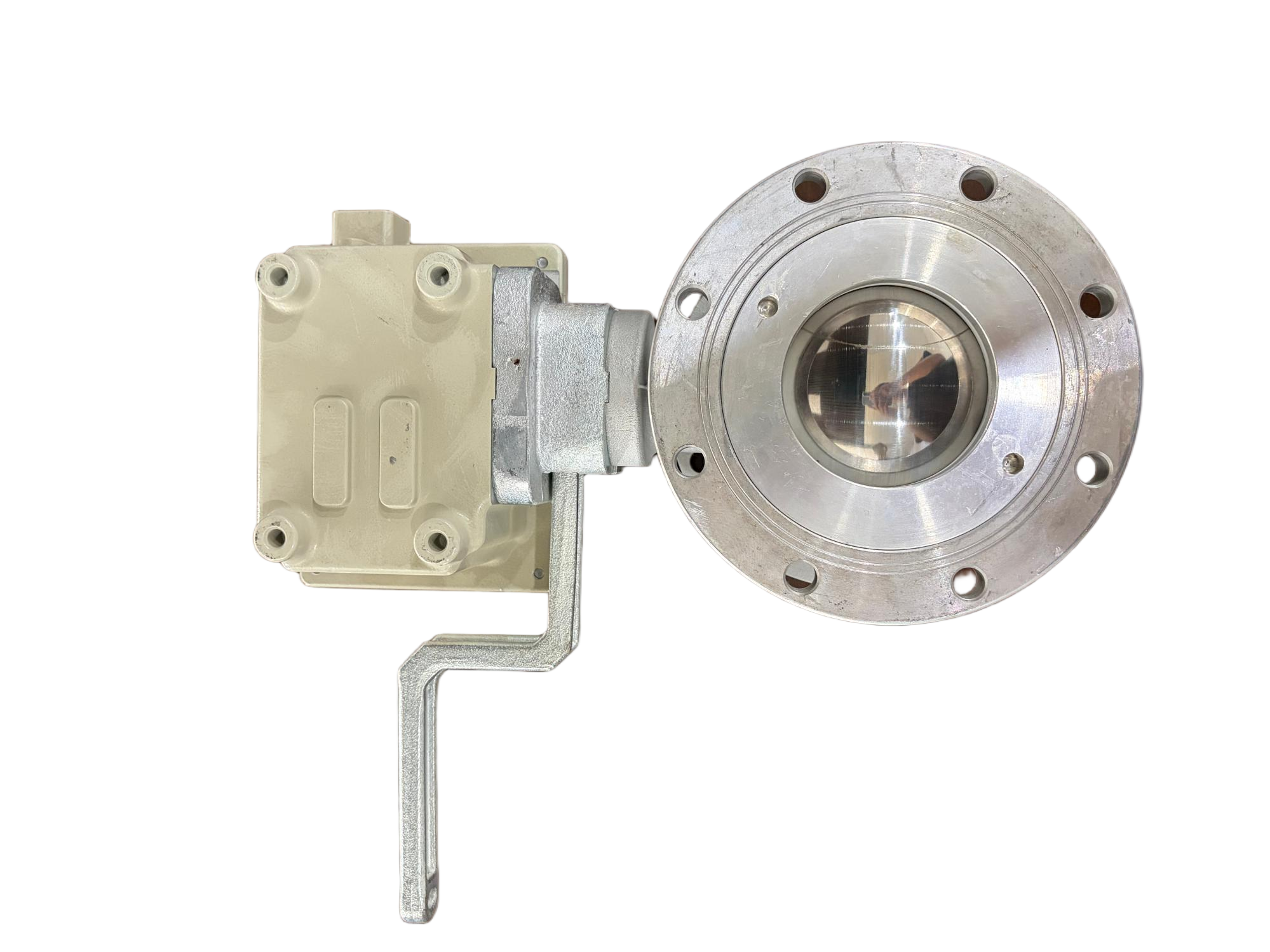

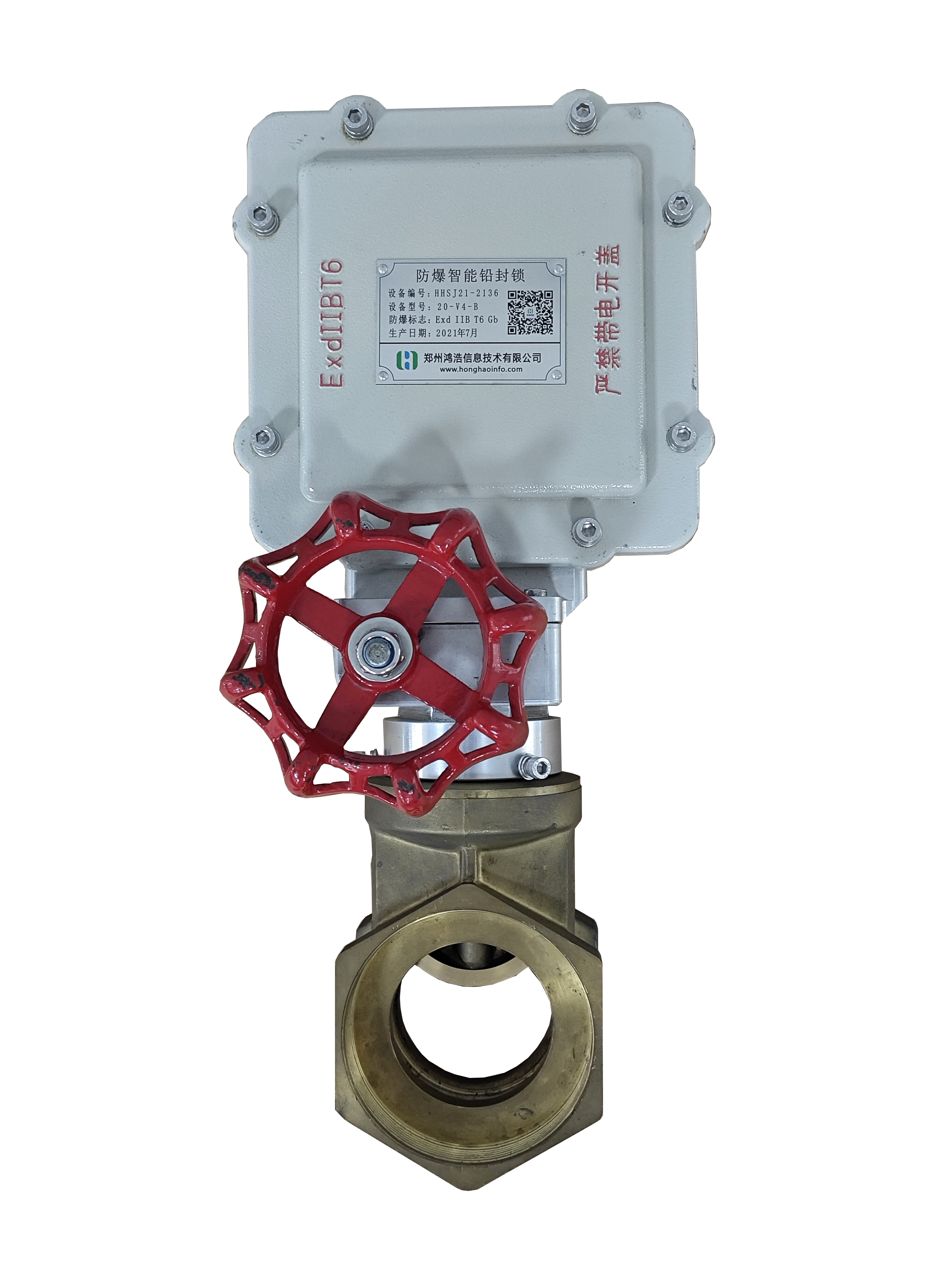

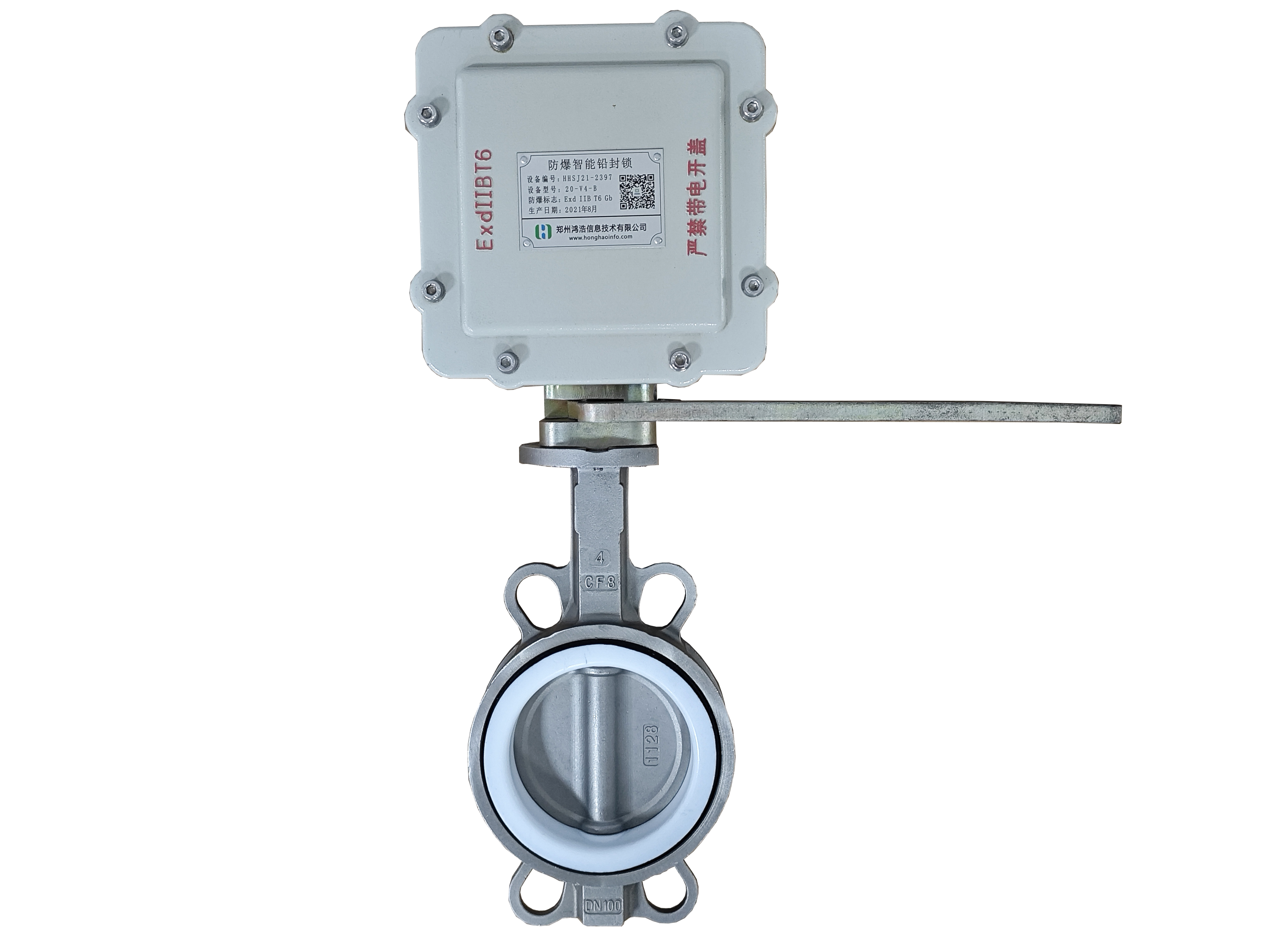

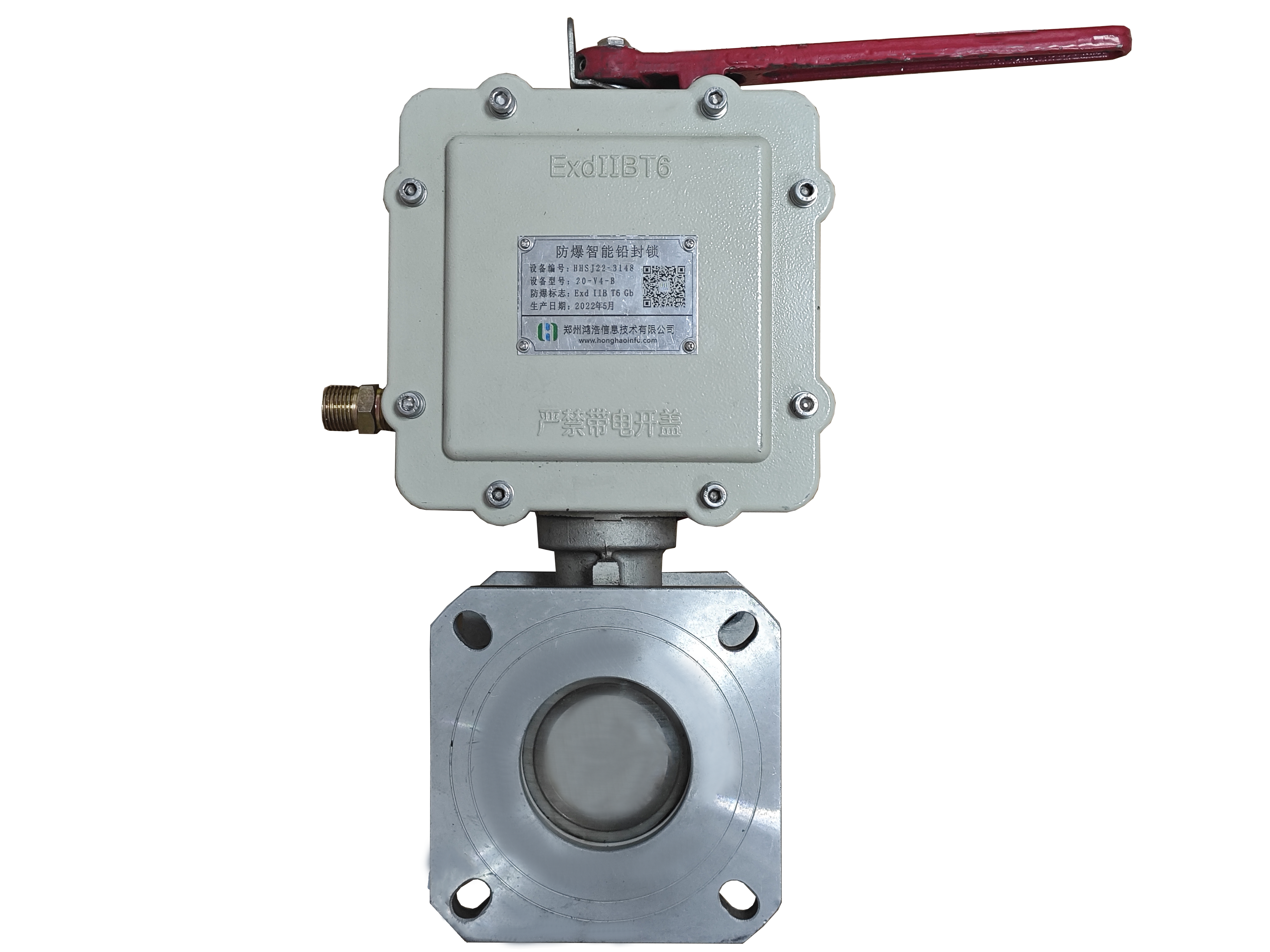

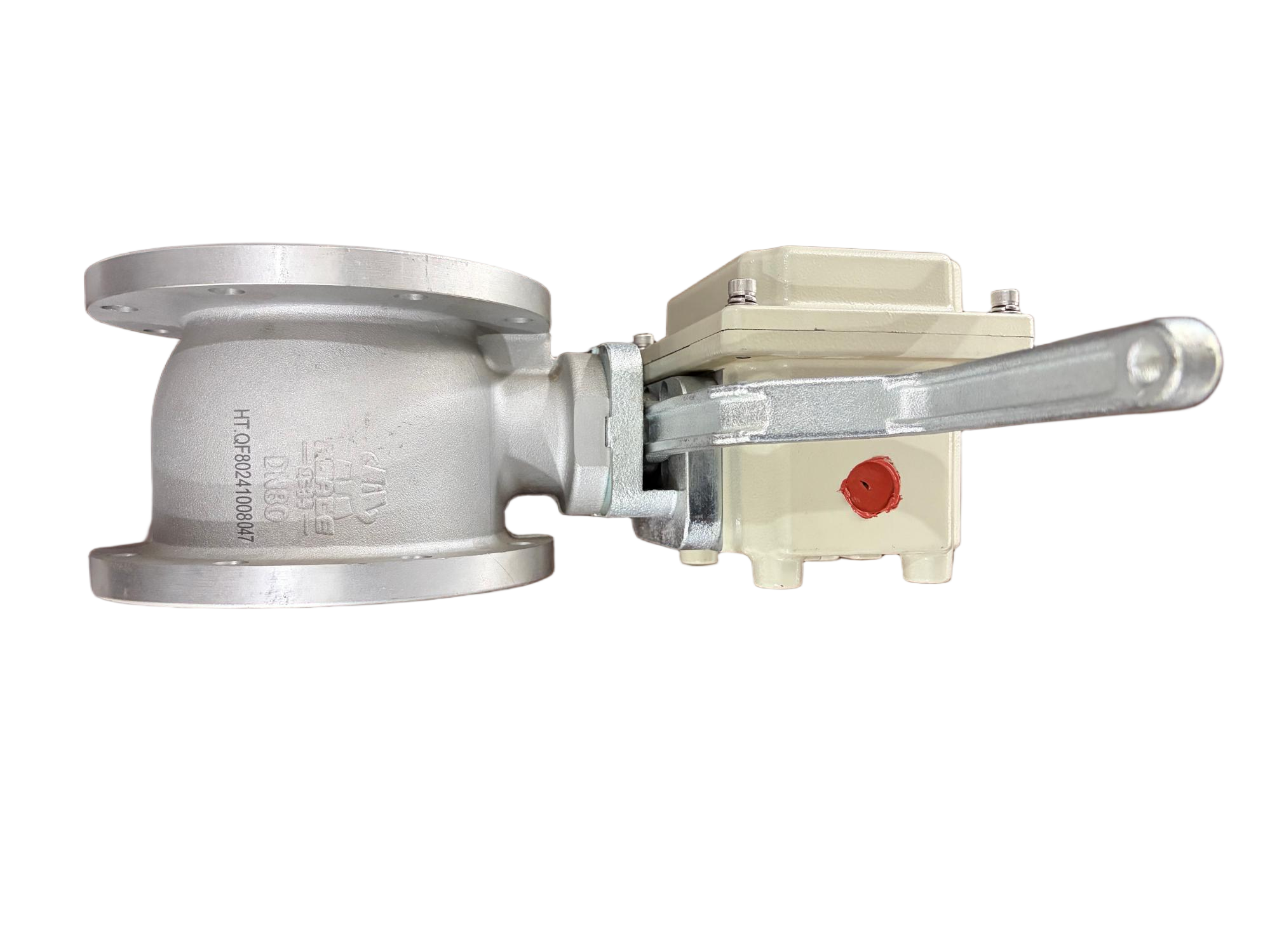

API Ball Valve Lock(LD)

›

‹

›

API Ball Valve Lock(LD)
Installed at the API oil unloading port on the bottom of the vehicle, it serves as the executive mechanism of the intelligent lead seal lock. It works in coordination with the controller (Z10) via wired connection, enabling stable and efficient monitoring of the status of the tank truck's oil unloading port and control of its opening and closing. This fundamentally solves the problems of traditional lead seals and other locks, such as being easy to copy, counterfeit, illegally replaced, and having unstable communication. Moreover, the intelligent valve lock can be customized according to the size of the oil unloading port.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions• Prompt & Emergency: With valve closing sound prompt; supports normal and emergency switching; physical dismantling allowed in extreme cases.
• Connection: Wired connection with central control.
• Mechanical Features: Purely mechanical design, resistant to strong magnetism; high stability, long service life, strong anti-destruction capability.
• Power-off Compatibility: Switching actions remain consistent before and after power-off.
Input VoltageDC12V
Maximum Power5W
Explosion-proof RatingExd ⅡB T4 Gb
Ambient Temperature-40~+70℃
Housing MaterialZL102 aluminum alloy, precision high-pressure die-cast forming
Installation MethodWafer Type
Relative HumidityNot exceeding 95%
Pollution DegreeClass Ⅲ

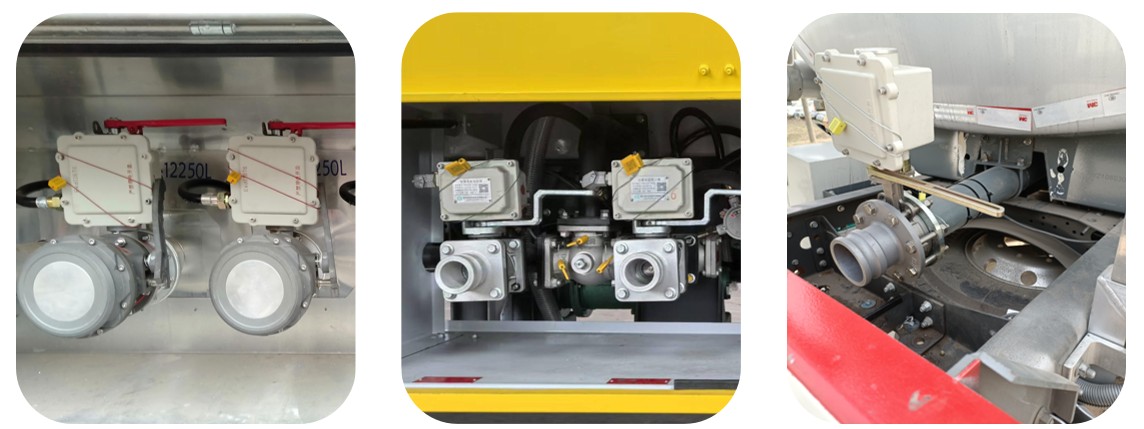

▌Installation Photo

API Ball Valve Lock(LD)-On-site installation
