IOT Lead Seal (Q100)

›

‹

  • IOT Lead Seal (Q100)

›

IOT Lead Seal (Q100)
he IOT Seal Strip (Q100) is an intrinsically safe explosion-proof device. It is mainly installed on core components of fuel dispensers such as mainboards, flow meters, and encoders. It is used in conjunction with the intelligent terminal (Z20) via near-field communication. Once the seal is broken, it alerts immediately. It is mainly used to replace traditional lead seals for intelligent management and control of the aforementioned components.
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main FunctionsThe IOT Seal Strip (Q100) is an intrinsically safe explosion-proof device. It is mainly installed on core components of fuel dispensers such as mainboards, flow meters, and encoders. It is used in conjunction with the intelligent terminal (Z20) via near-field communication. Once the seal is broken, it alerts immediately. It is mainly used to replace traditional lead seals for intelligent management and control of the aforementioned components.
Explosion-proof RatingEx ia IIC T6 Ga
Power SupplyBuilt-in disposable battery
Service Life3 years (except for low-temperature areas)
Ambient Temperature-30-+70°C
Number of Uses12000次
Encoding TypesThree codes in one (physical code, RFID code, device chip code)
Monitoring MethodReal-time monitoring and real-time alarm

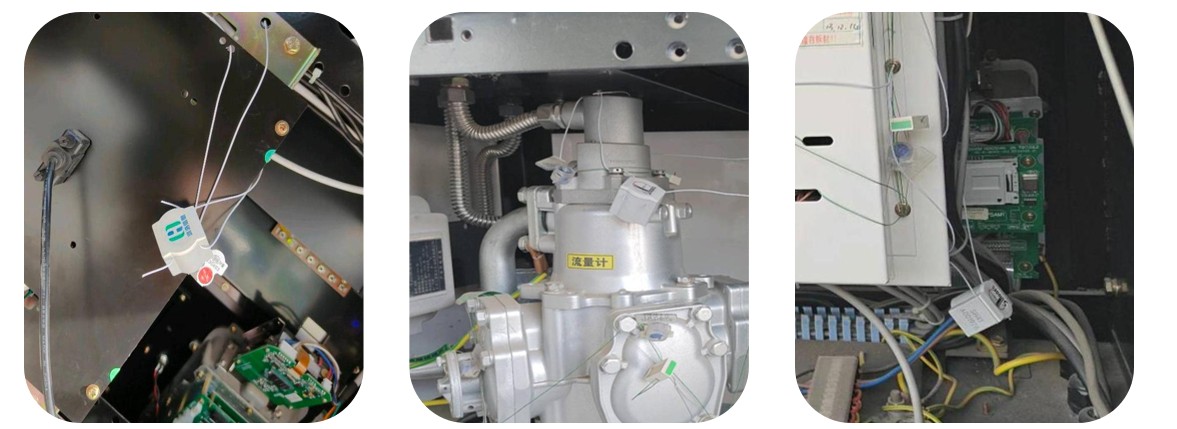

▌Installation Photo
