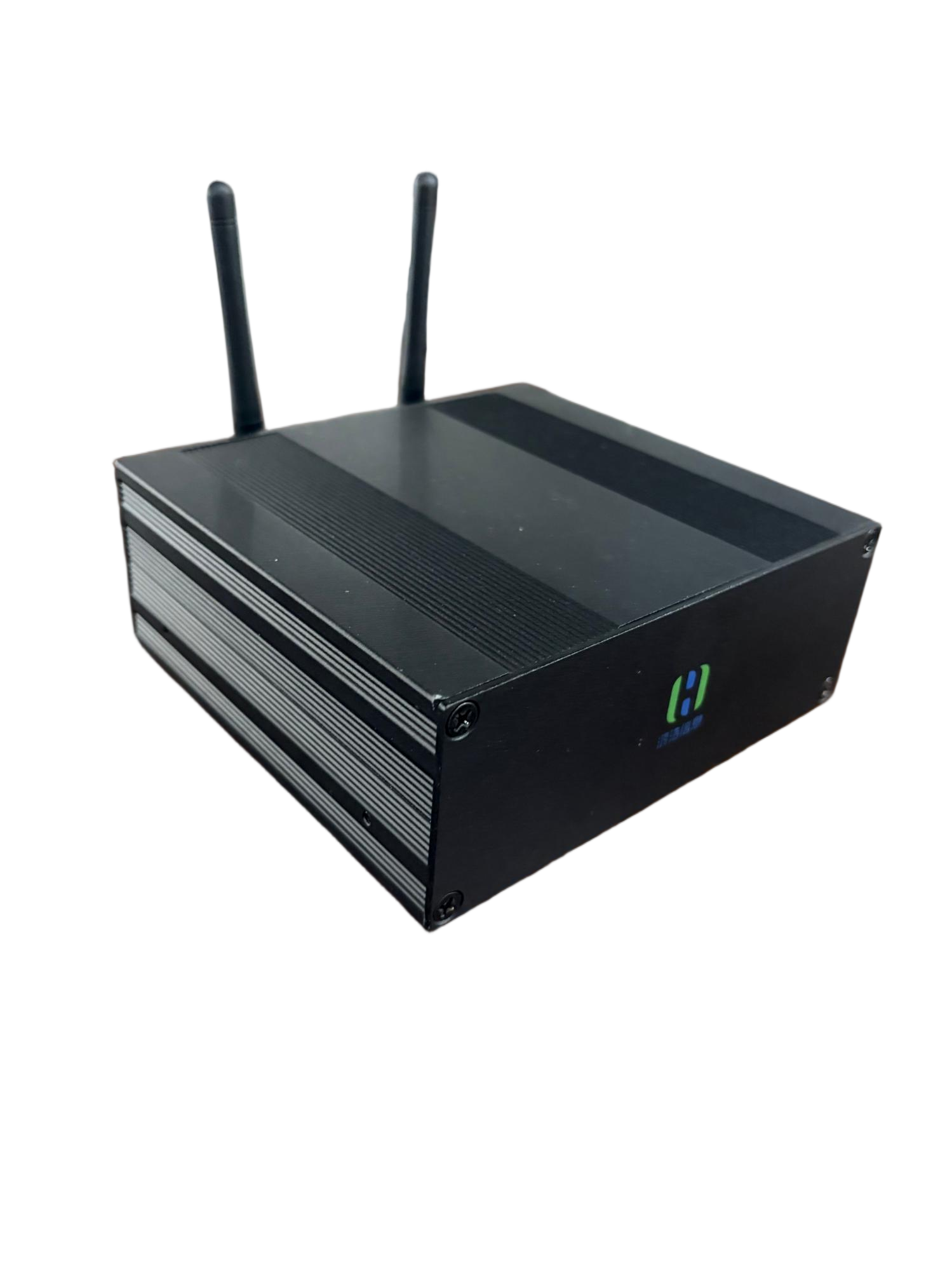

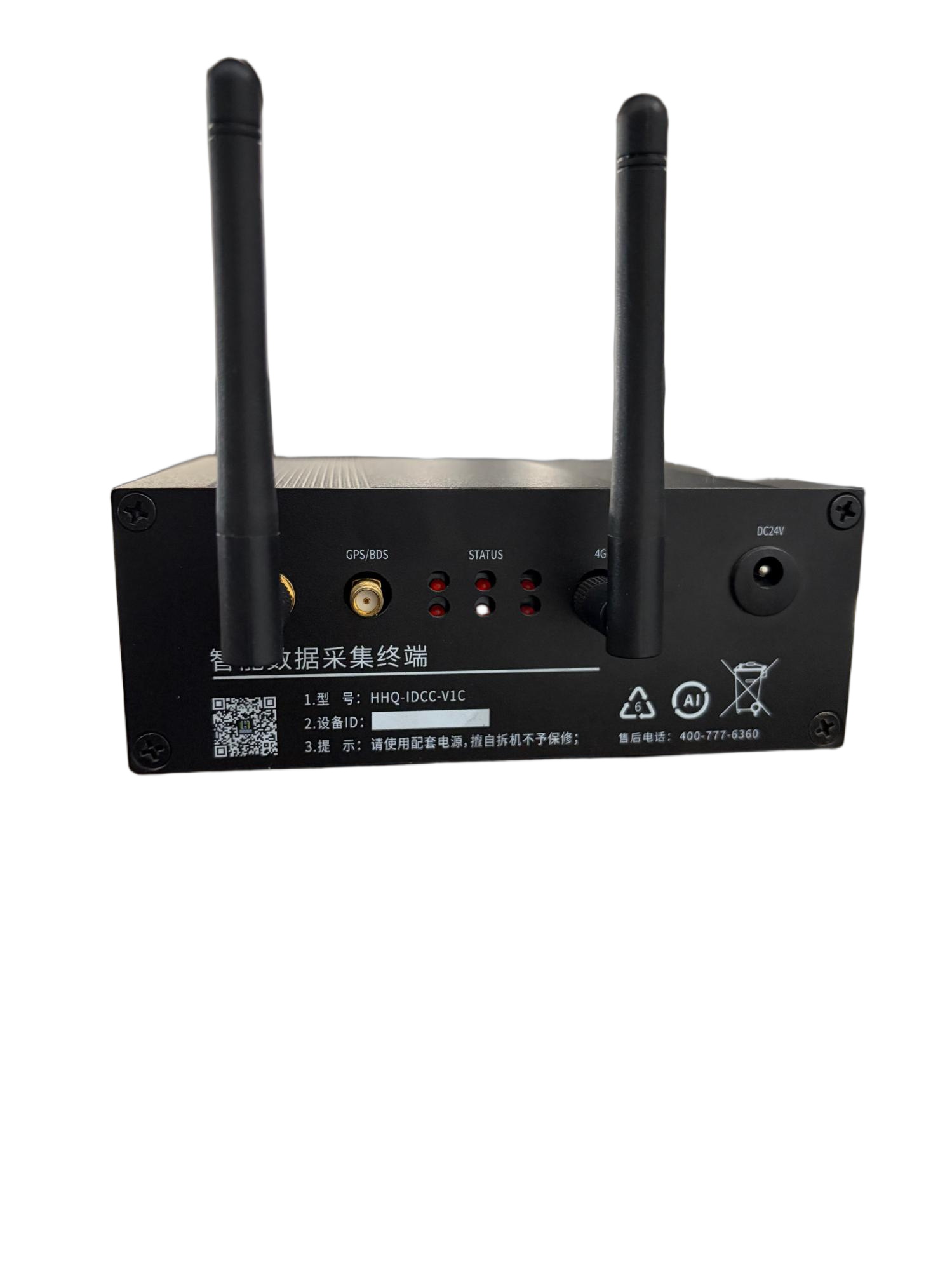

Receiving Terminal(Z20)
It is an edge computing device supporting the Q100/Q200/Q300 series products, and can be installed in gas station buildings or vehicle cabs. It collects the working status of Q100/Q200/Q300 in real-time via wireless technology, and realizes data interaction with the management system platform through 5G/4G networks. This device can support the management of up to 256 IoT terminals (i.e., Q100/Q200/Q300).
WhatsApp
Contact Sales

Product Details

▌Equipment Parameters


Indicator ItemsParameters
Main Functions

> Positioning: Supports GPS and DBS dual-mode, accurately obtains location

> Intelligent early warning: Includes offline, cross-region, disconnection and other warnings, responds to abnormalities in a timely manner

> Data storage: Supports offline storage, retains 30 days of historical data

> Data analysis: Can analyze and process data to assist in decision-making

> Emergency battery life: Built-in battery, can work for 4 hours when power is off, ensuring continuous functionality

Input VoltageDC12V
Maximum Power8W
Ambient Temperature-40-+70°C
Signal Input433MHz/LoRa/4G
AntennaExternal type
Battery Life4 hours

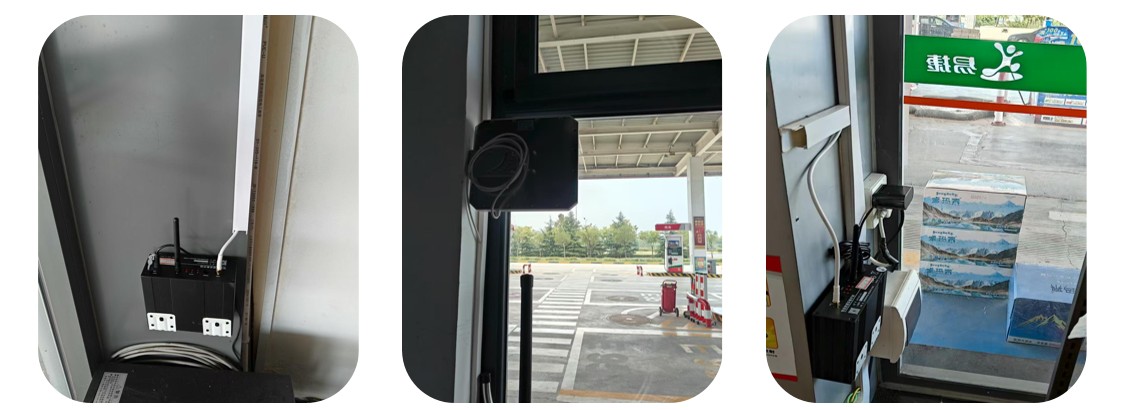

▌Installation Photo
