Zhengzhou HUGO Information Technology Co., Ltd. was established in 2012 and is located in Zhengzhou High-tech Development Zone. As a diversified high-tech enterprise integrating technology, products, and applications, it has always focused on big data analysis, satellite positioning, and 3S R & D and application of cutting-edge technologies such as field informatization and virtual reality. With strong technical strength and rich industry experience, the company has built a product matrix covering many fields to provide comprehensive intelligent solutions for petroleum and petrochemical, logistics, dynamic transportation and other industries.

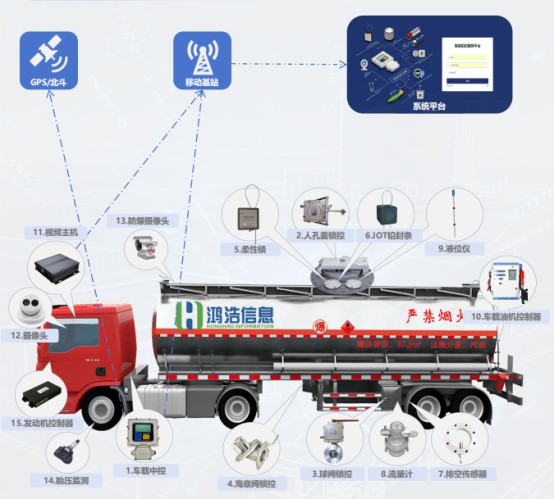

1.Tank Truck Scenario Application: Whole Process Digital Monitoring and Safety Control

In order to solve the problem of quantity and quality supervision of finished oil tanker transportation industry, HUGO independently developed a high-performance intelligent monitoring platform relying on cutting-edge technology matrix and deeply integrating radio frequency technology, satellite positioning technology (Beidou GPS), geographic information technology, wireless data communication technology, big data analysis technology, artificial intelligence technology (AI), cloud computing storage technology and video monitoring technology, the platform integrates intelligent hardware equipment such as intelligent lead blockade, video monitoring, liquid level meter, flowmeter, vehicle-mounted tanker, etc., and realizes digital monitoring of the whole process of cargo transportation through multi-technology cooperation, effectively solving the problems of quality and safety control and traceability of cargo quantity.

address core needs:

1,cargo safety: intelligent locking as the core, linkage status monitoring and video surveillance, to build a comprehensive protection system.

2,Driving safety: With video monitoring as the visual center, the real-time early warning of tire pressure monitoring and the source control of drunk driving monitoring are linked to build a full-chain safety barrier.

3,Accurate metering: dynamic monitoring of liquid level metering and accurate verification of flow metering to build a full-process metering control network.

System Platform Introduction

system builds eight management centers around the three core requirements of vehicle driving safety, cargo safety and accurate metering, integrates more than 400 specific functions, and supports four language switching at the same time, covering all kinds of needs of customers.

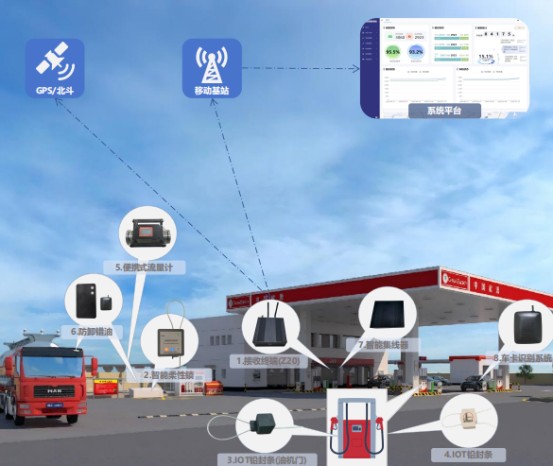

2.Gas Station Scenario Application: Double Improvement of Equipment Safety and Operational Efficiency

gas station scenario needs to solve the problems of equipment safety, oil misloading, inventory monitoring and refueling quantity management. HUGO information through intelligent equipment and system linkage, to achieve intelligent control of the whole process of gas station.

address core needs:

1,Equipment safety/oil product safety: take the safety of the core components of the oil machine (flowmeter, main board and tax control module) as the core defense line, link the source blocking mechanism to prevent the wrong unloading of oil products, and construct a multi-dimensional protection system supplemented by the oil inlet safety key barrier of oil unloading port lock control.

2,inventory monitoring: with the oil inventory management system as the data center, the real-time inventory perception of the linkage level meter system, the automatic generation of accurate oil demand orders, the construction of efficient and intelligent inventory control closed loop.

3,quantity monitoring: the remote transmission of refueling records is used as the real-time data base, the intelligent analysis of remote transmission statistics of refueling data is linked, and the accurate traceability of the vehicle card identification system is combined to build an intelligent quantity monitoring network.

System Platform Introduction

has built three management centers around the core requirements of gas station equipment and oil safety, oil inventory and refueling quantity, integrating more than 100 specific functions, and supporting four language switching to fully cover all kinds of needs of customers.

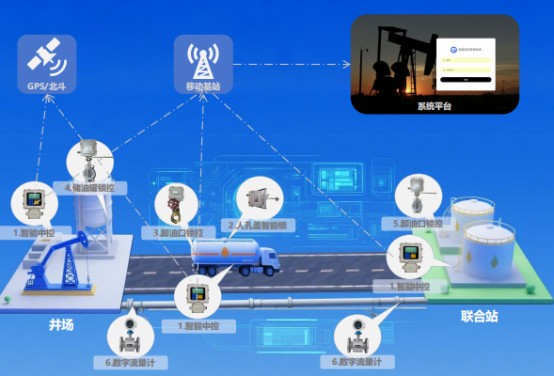

3.Crude Oil Scenario Application: Integrated Anti-theft and Supervision Solution

for a long time, crude oil theft has been a major problem in the production process of the oil area. On the one hand, it will cause a lot of economic losses, on the other hand, it will seriously affect the production of the oil area and the personal safety of the employees. However, due to the particularity of the production environment in the oil area, even if a large amount of human resources are invested, there are still problems such as difficult management and blind areas of supervision, in this context, we rely on the Internet, big data analysis, cloud computing face recognition and other advanced technologies to establish a set of anti-theft, early warning, monitoring, alarm, analysis as one of the crude oil storage and transportation monitoring and management system.

address core needs:

1,risk early warning and traceability management: the system has the ability of early warning analysis and oil traceability management. through the monitoring of pipelines, it can realize the functions of pipeline oil theft alarm and output early warning, and timely find and respond to abnormal situations. At the same time, with the help of the supervision system of cloud platform architecture, the data are analyzed and processed to form a complete chain of evidence and reports, providing accurate basis for accident traceability, responsibility identification and integrity risk prevention and control, and solving the problem of high integrity risk in oil areas.

2, security: intelligent locking as the core, linkage status monitoring and video surveillance, to build a comprehensive protection system.

3,Labor cost: solve the problem of "the special production environment in the oil area (vast area, complex terrain and harsh environment), and the investment of a large amount of human resources still has great difficulty in management and blind spots in supervision.

System Platform Introduction

HUGO crude oil storage and transportation intelligent lock control supervision platform adopts cloud platform architecture. Through independently developed process engine and standardized data interface, it realizes a complete set of technical solutions from data structure design and front and back ends (system platform B/S mode client, mobile end, etc.) to provide users with one-stop big data analysis and processing services such as location, analysis and report forms. At present, the software platform has applied for more than 10 copyrights, so as to ensure the absolute leading system technology.

4.Crude Oil Scenario Application: Integrated Anti-theft and Supervision Solution

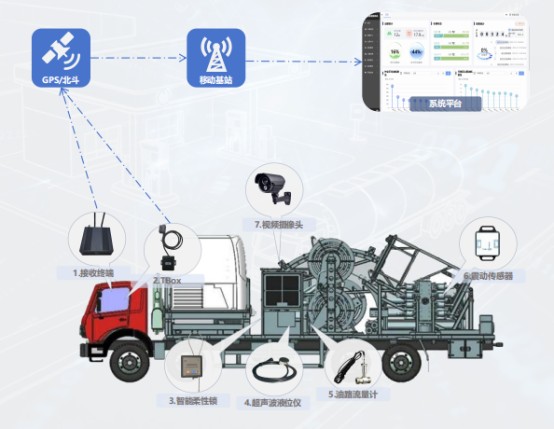

fuel management has always been a major problem in the accounting of unit transport vehicles and fuel equipment. Due to the particularity of the environment in which mobile equipment and field equipment are located, even if a large amount of human resources are invested, they still face problems such as difficult management and blind spots in supervision. In this context, relying on GPS, sensors, Internet of Things, Internet, big data analysis, cloud computing and other advanced technologies, a set of fuel equipment monitoring and early warning system integrating anti-theft, early warning, monitoring, alarm and analysis has been established. The system is designed and developed based on equipment powered by fuel oil. According to different needs, we independently develop data acquisition and perception equipment, collect the main technical parameters of the required objects, transmit them back to the data pool, and visually display the relevant data at the client, providing a scientific and reliable basis for fuel equipment management.

address core needs:

1,Accurate metering: The pipeline flowmeter is installed on the pipeline between the fuel tank and the engine, and can collect engine fuel consumption data in real time; The ultrasonic level meter obtains the oil quantity from the bottom of the fuel tank through ultrasonic waves without perforating to damage the fuel tank structure. The vibration sensor establishes a vibration/fuel consumption curve model for the equipment separately, and judges the fuel consumption through the vibration frequency. These equipment work together to realize accurate fuel consumption measurement.

2,digital management: TBox is installed at OBD of the vehicle, which can collect about 30 parameters such as vehicle speed, fuel consumption and engine speed in real time and transmit them to the background. The receiving terminal (Z20) is used as the control center to communicate with various equipment and transmit data to the background. The system platform integrates, analyzes and visually displays these data to provide scientific basis for digital management of fuel equipment.

System Platform Introduction

The whole system focuses on the core requirements of fuel safety management of fuel equipment, and designs a set of fuel consumption safety management system, which integrates more than 100 functions and supports parallel use with other business systems of HUGO.

Product Introduction

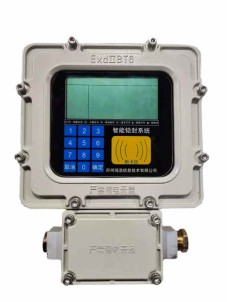

1.intelligent central control (Z10):The device is installed in the convenient operation area of the tanker and is the on-board edge computing terminal and control center of the system. The operator controls the whole system through the equipment on site, communicates with intelligent hardware such as intelligent lock control and liquid level meter in real time, and exchanges data with the background server through wireless transmission network.

2. Intelligent Manhole Cover Lock (LU):is installed at the manhole cover on the top of the vehicle. As an intelligent lead blockade actuator, it can work together with the intelligent central control through wired connection to stably and efficiently realize real-time monitoring of the switch status of the manhole cover of the tanker and strong switch control.

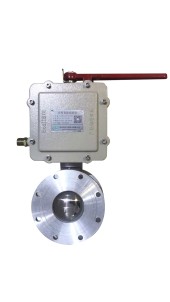

3. Intelligent valve door lock (LD):is installed at the API oil discharge port or oil discharge valve at the bottom of the vehicle. As an intelligent lead blockade actuator, it can work together with the intelligent central control through wired connection to stably and efficiently realize real-time monitoring of the state of the oil discharge port of the tanker and strong switch control. The intelligent valve door lock can be customized according to different oil discharge port sizes.

4. Subsea valve lock (H10):is installed at the subsea valve of the vehicle, and the switch of the subsea valve is controlled by pneumatic mode. Through the coordinated work of wired connection and intelligent central control, it can stably and efficiently realize real-time monitoring and strong switch control of the subsea valve of the tanker.

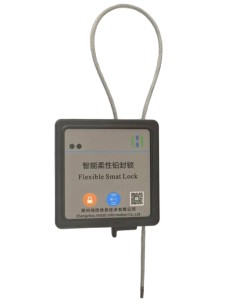

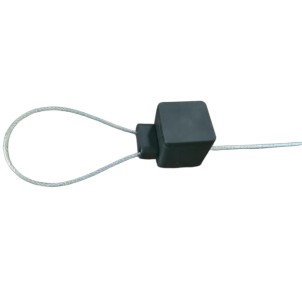

5. Intelligent flexible lock (R1/R2):the equipment is installed in the manhole cover and API oil discharge port, the cost is low, can replace the "intelligent manhole cover lock (LU)" and "intelligent valve door lock (LD)". However, because it is not a strong control device, it needs to be matched with corresponding management methods to achieve effective control of the vehicle.

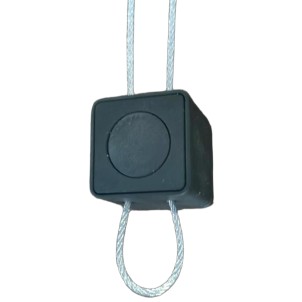

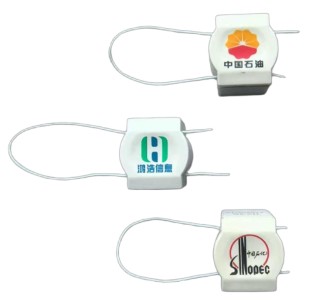

6.l0T intelligent lead seal (Q200/Q300):, the equipment is installed in the risk position of the tanker, such as breathing valve, manhole cover and other parts that are easy to disassemble but not easy to detect. Through wireless connection and intelligent central control, the equipment cooperates with other hardware to realize accurate prevention and control of the whole vehicle.

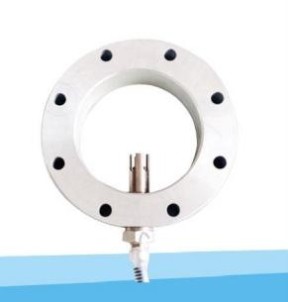

7. Empty monitoring equipment (P10):The equipment is installed at the pipeline of the oil discharge port and operates in coordination with the intelligent central control system through wired connection. Its core function is to monitor the liquid accumulation state in the pipeline in real time and accurately judge whether there is oil in the pipeline.

8. On-board flowGauge:The equipment is installed at the oil unloading port at the bottom of the vehicle. As an intelligent metering equipment, it can stably and efficiently realize accurate digital metering of the amount of oil to be unloaded through wired connection and intelligent central control. The intelligent central control can transmit the data back to the background system in real time and support offline on-site viewing.

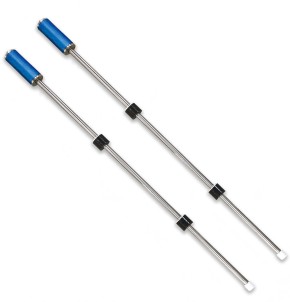

9. Vehicle level meter:is installed at the manhole cover on the top of the vehicle. As an intelligent metering device, it works together with the intelligent central control through a wired connection to stably and efficiently monitor the height (volume), temperature, pressure, water level and other parameters of the oil in the tank. The intelligent central control transmits the data back to the background system in real time.

10. On-board oil machine controller:Control a number of parameters of the vehicle refueling machine, it can realize remote quantitative refueling, remote locking machine, price modification and other functions, which can meet the individual needs of customers.

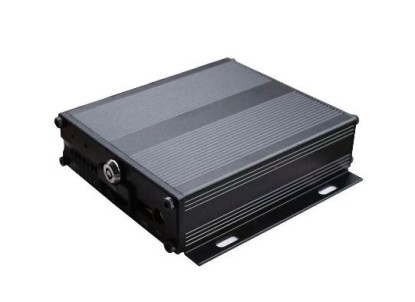

11. Video Host:The device is installed in the cab, the host integrates 4G functions, and supports access to multiple analog or digital cameras, which can effectively ensure driving safety and cargo safety. The video data collected can be intelligently connected to the intelligent lead sealing system through the background, providing key image support for intelligent early warning and accident traceability.

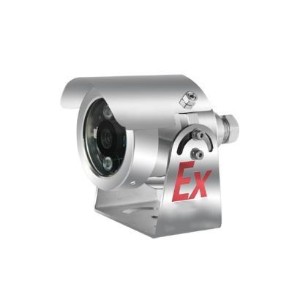

12/13. Video Host:is divided into a camera installed in the cab and an explosion-proof camera on the tank to collect image data on the car in real time.

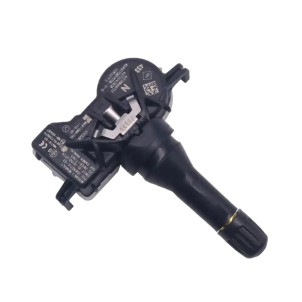

14. Tire pressure monitoring sensor:remotely monitor tire pressure and upload status information in real time through intelligent central control.

15. Automotive engine controller:monitors key conditions such as whether the driver is drunk driving and whether the vehicle is in the electronic fence in real time, and intelligently controls the vehicle ignition system based on compliance judgments.

16. Receiving terminal (Z20):The device is installed in the gas station control room and is the vehicle-mounted edge computing terminal and control center of the system. It communicates with station-level equipment such as l0T intelligent lead seal, intelligent flexible lock (R1) and portable flowmeter in real time through wireless means, and exchanges data with the background server through wireless transmission network.

17.IOT intelligent lead seal (Q100):The equipment is installed in the main board, encoder, flow meter and other core components of the tanker, which can effectively prevent the core components from being damaged. It works in conjunction with the receiving terminal through a wireless connection, and alarms in real time once the seal is broken.

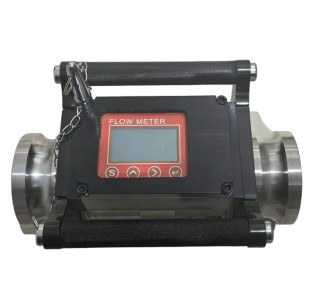

18. Portable flow meters:The equipment can be flexibly applied to various metering scenarios such as oil loading and oil unloading. It is equipped with 4G communication function, can realize seamless data interaction with intelligent lock control system, and supports independent operation mode to meet diversified application requirements.

19. Prevent the wrong unloading of oil:the equipment works together with other HUGO products (such as Z10, Z20, Q100, Q200, R1, R2, etc.) installed in oil depots, oil tankers and oil stations, accurate oil supply can be realized and oil supply safety can be ensured.

20. Smart Hub:, the equipment can collect the refueling data of the tanker and the monitoring data of the level meter in real time, and realize efficient data interaction with the background server relying on the wireless transmission network.

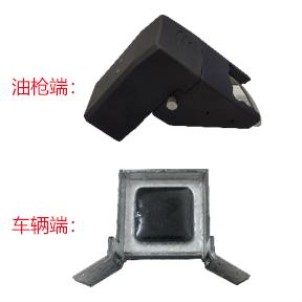

21. Card identification equipment:oil card identification devices are respectively installed at the fuel tank port of the vehicle and the fuel gun port of the fuel dispenser, the fuel dispenser can only refuel the designated vehicle, and the fuel data can be uploaded to the data center in real time.

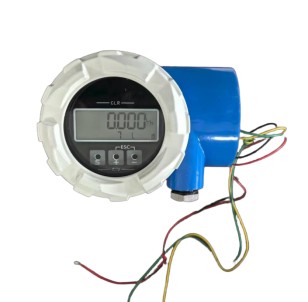

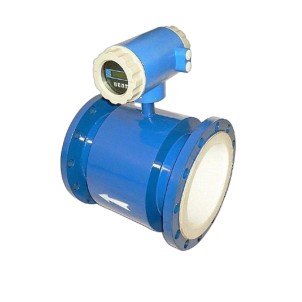

22. Large diameter digital flowmeter:is installed on the pipeline, which can measure the flow rate, flow rate, etc., and find abnormalities, and cooperate with the intelligent lock control system to realize the safety control at the station level.

23.TBox:is installed at the OBD interface of the vehicle and integrates the advanced CAT1 communication module and the 1-channel CAN of vehicle communication. It can upload the vehicle running status, engine data, vehicle fuel consumption data, driver control data, etc. to the background system through the wireless module to realize remote fleet management and reduce vehicle fuel consumption by standardizing driving behavior.

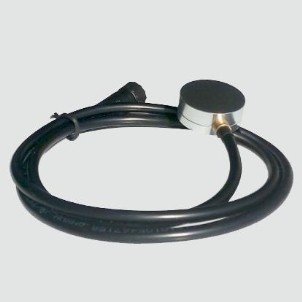

24. Ultrasonic level meter:is installed outside the bottom of the oil tank, sends out ultrasonic signals from the bottom, meets the oil surface to reflect back, and then calculates the liquid level height according to the time and speed. At the same time, combined with our unique digital signal processing technology, to overcome the influence of the container wall, so as to achieve high-precision non-contact measurement of oil surface. The fuel tank does not need to be perforated and does not damage the fuel tank structure.

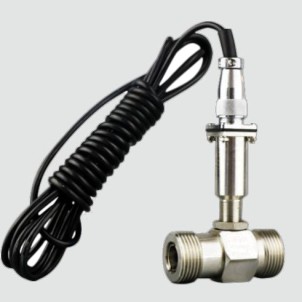

25. Pipeline flowmeter:is installed on the pipeline between the fuel tank and the engine, monitors the instantaneous fuel consumption of the engine in real time and sends pulse signals, and works together with the receiving terminal (Z20) through a wired connection.

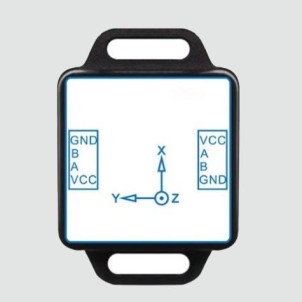

26. Vibration sensors:is installed on the motor, pump and other equipment with severe vibration to realize the omni-directional measurement of vibration and shock by outputting the displacement, speed, angle and frequency of the three-axis vibration. On this basis, the model is established by combining the vibration data and fuel consumption of the tested equipment (motor, pump), and whether the tested equipment is damaged can be judged.

Company Services and Qualifications

Service Network:The company has 2 branches, 6 offices, and 25 installation service stations in China, equipped with technicians, engineering vehicles and spare parts; it also has an independent operation center and monitoring center, which operates 7*24 hours a day to provide online Monitoring and multi-channel service support.

Qualification Honor:has the qualifications of national high-tech enterprise, Henan Province "specialized and special new enterprise", intelligent seal academician workstation, etc., and has obtained more than 50 patents, more than 10 invention patents, more than 10 explosion-proof certification and more than 50 soft works.

Partners:has established cooperative relations with Sinopec, PetroChina, China Railway, CNOOC and many other industry leaders, and its products and services have been widely recognized.
