in the traditional transport of goods, the safety of goods is often difficult to be guaranteed, because it is difficult to determine whether the goods in the course of transport has been tampered with or stolen. The emergence of intelligent lead blockade can realize the whole process tracking and supervision of goods through the Internet of things technology, so as to ensure the safety and authenticity of goods.

intelligent lead blockade through the unique lead blockade control structure technology, and combined with the mainstream cutting-edge technology, to achieve.fine,dynamic and scientific management of cargo transportation, only personnel with corresponding authority can unseal the lead blockade and record the positioning and locking switch positions in real time, thus realizing the whole process supervision and traceability of the goods.

the current problems facing the transportation of goods

1,Physical lead seal anti-counterfeiting technology lags behind the traditional pure physical lead seal its structure is simple, the application of unsealed logo is not unique or easy to copy, can not effectively prevent cheating, anti-counterfeiting performance is poor.

2,data lags behind the traditional physical lead seal. When it is used, the broken state of the lead seal cannot be detected in time and effectively. When the lead seal is illegally damaged, it cannot be found and reported in time.

3,management method is single. Traditional lead seals cannot be managed online. For many links such as procurement, recording, sealing, inspection and unsealing of lead seals, only manual recording of ledgers can be used. Once the management method is backward, there are many manual interventions and high error probability, so it is impossible to make overall statistics and analysis of lead seal data.

4,Can not be reused Traditional pure physical lead seals are one-time use, especially in the need for frequent breaking of the scene, the waste of resources is huge, is not conducive to cost control.

5,cannot be effectively traced back precisely because of the backwardness of management methods, the pure manual recording method cannot effectively monitor the whole life cycle of lead seals, and the unsealing personnel and records rely on manual archiving. Once problems occur, it is difficult to obtain evidence and trace back.

Hardware Introduction

hardware part includes intelligent lead blockade, intelligent lead seal transmission terminal, providing real-time monitoring and reporting of lead seal status and other functions, through the Internet of Things technology to achieve the goods.the whole process of tracking and supervision, to ensure the safety and authenticity of the goods.

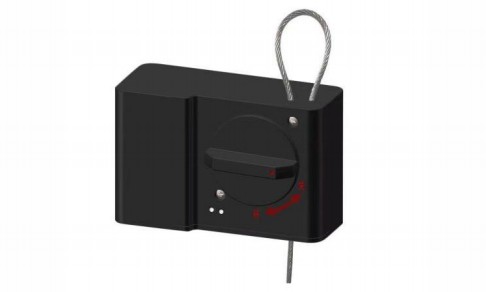

intelligent lead seal:intelligent lead seal for thisAnnexplosion-proof equipment shall be applied to the main control parts of the vehicle.

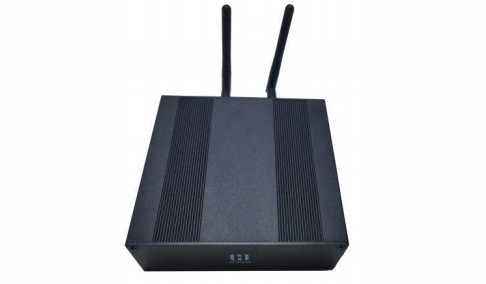

intelligent seal transmission terminal:transmission terminal is installed in the vehicle cab, and based on the communication between the Lora communication module and the acquisition terminal, the functions of data reporting, instruction receiving and parameter receiving are realized.

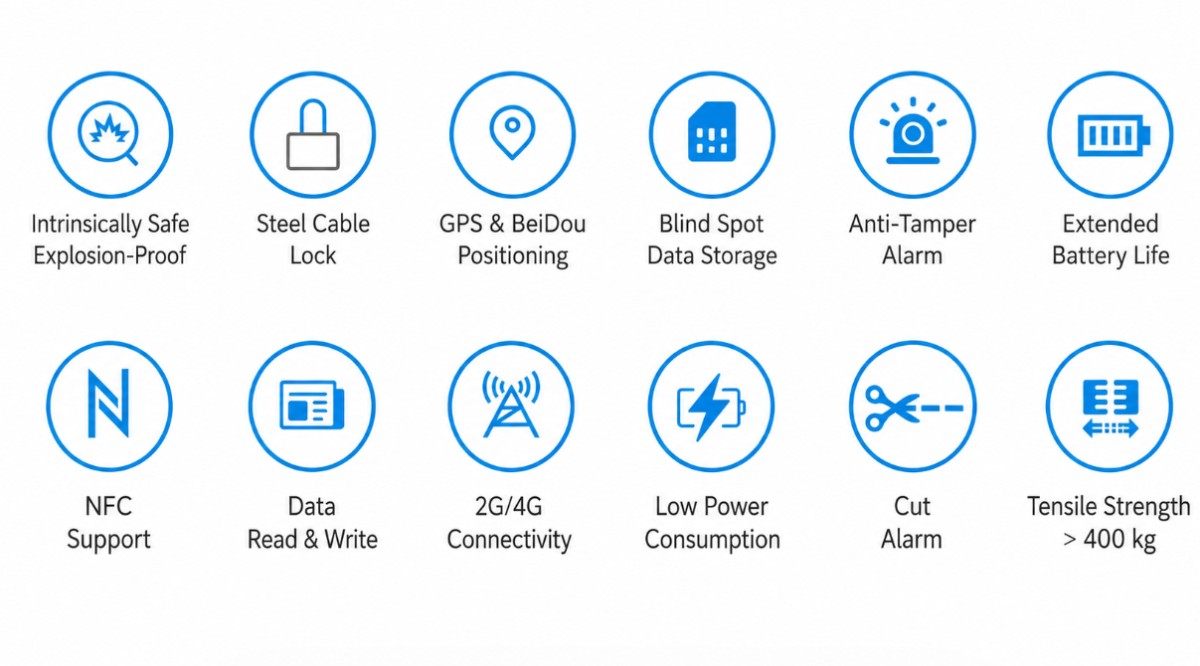

lock characteristics

Functional Characteristics

1,GPS/Beidou dual-mode positioning tracking, support real-time upload and track playback.

2,GPS positioning time and 4G module network synchronization time calibration.

3,supports 4G network communication and APN.

4,system platform remote operation, mobile phone (WeChat applet and APP) operation, SMS operation.

5,is based on the communication between the Lora communication module and the transmission terminal, and the data can be stored locally up to 6W pieces of data offline.

6,Bluetooth wireless communication: based on Bluetooth communication module and mobile phone Bluetooth communication, to achieve lock control, battery voltage reading and upgrade work.

7, dustproof and waterproof, resistant to high and low temperature to adapt to a variety of harsh environments.

System Platform Introduction

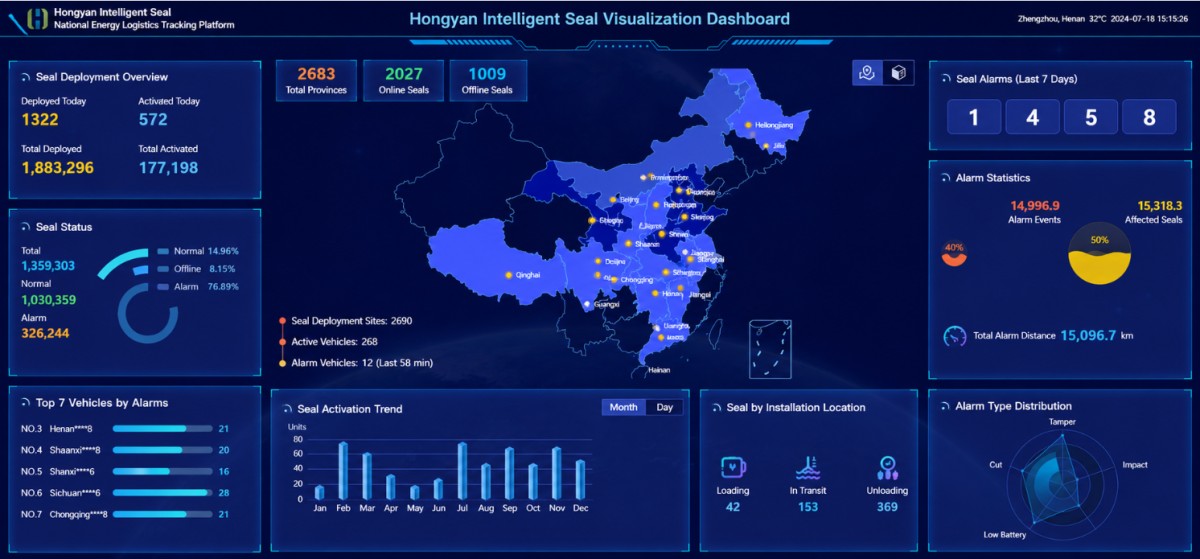

Platform Overview

provides an overview of the operation of all vehicles on the front page of the platform, and expresses the total number of vehicles, online vehicles, dispatch number, total alarm number, total mileage and other information in the form of data visualization, so that decision makers can see the operation of the entire team at a glance.

Vehicle Real-time Monitoring

system monitors the position, speed, lock status, heading, transportation order execution and other information of the selected vehicle in real time, and combines high-definition satellite images to accurately and intuitively monitor all kinds of information of the vehicle.

Third-party platform access management

HUGO Intelligent Lead Seal System Platform is based on the design concept of openness and continuous value creation for customers. The system supports the access of any third-party equipment and platform. Currently, the connected equipment includes video, level meter, flowmeter and other systems.
